Scania DC13 Cylinder Head Buying Guide: The Ultimate Comparison of OEM, Reman, and Aftermarket Solutions

The Scania DC13 engine is a legend in the world of heavy-duty trucking. Known for its robust inline-6 design, exceptional fuel efficiency, and high torque output, it powers logistics fleets worldwide. However, even the most durable engines have an Achilles' heel. For the DC13, as with many high-compression diesel engines, the cylinder head is often the first major component to require attention as mileage accumulates.

When your driver calls in reporting coolant loss, white smoke, or system pressurization, you know the clock has started ticking. Every hour that truck sits in the service bay is revenue lost.

You face a critical decision matrix:

1. Pay the premium for a Scania OEM unit?
2. Gamble on a cheap remanufactured (reman) part?
3. Choose the strategic middle ground with a high-quality aftermarket solution like Volgen Power?

This comprehensive guide goes beyond simple price tags. We will dissect the metallurgy, the engineering risks, and the Total Cost of Ownership (TCO) to help you make a decision that protects both your engine and your profit margin.

@themetalist.project

The master has completely assembled a 13-liter engine. Scania DC13. Giveaway $ #restoration #repair #technology #truck #amazing

♬ original sound - The Metalist Project⚙️

Why Do Scania DC13 Cylinder Heads Fail?

To choose the right replacement, you must first understand the enemy. Why did the original head fail? Understanding the failure mode is critical to preventing a recurrence.

1. Thermal Cycling and Fatigue

The DC13 operates under immense thermal stress. The constant cycle of heating up to operating temperature and cooling down causes the cast iron to expand and contract. Over hundreds of thousands of kilometers, this leads to metal fatigue.

• The Risk: Micro-cracks often develop between the valve seats or around the injector sleeves. These cracks are initially invisible to the naked eye but expand under load.

2. Cavitation and Erosion

In poorly maintained cooling systems, air bubbles form and collapse against the metal surfaces inside the water jacket. This process, known as cavitation, eats away at the cylinder head from the inside out, weakening the walls until they crack.

3. The "Reman" Trap

This brings us to a crucial point about replacement parts. If you buy a remanufactured cylinder head, you are buying a casting that has already survived these stress cycles. The metal memory of that fatigue remains, even if the surface looks shiny and new.

New DC13 Aftermarket vs. OEM: Why Pay the Brand Premium?

Option A: The Scania OEM Part (The Gold Standard)

Purchasing from an authorized Scania OEM parts distributor is the path of least resistance but highest cost.

• Engineering: You receive the latest iteration of the casting. Scania often updates designs silently to fix past issues.
• Logistics: The biggest downside, aside from price, is availability. OEM supply chains can be slow, and backorders are common for older engine variations.
• Who is this for? Vehicles still under factory warranty or fleets with unlimited maintenance budgets.

Option B: The Remanufactured Head (The False Economy)

Many shops offer "Reman" heads. They take an old core, weld up visible cracks, resurface the deck, and install new valves.

• The Hidden Danger: Deck Height. Every time a cylinder head is resurfaced (skimmed) to make it flat, material is removed. If a head has been remanufactured 2 or 3 times, the deck height decreases. This brings the valves dangerously close to the pistons and alters the compression ratio, leading to potential knocking or inefficient combustion.
• Welding Stress: Welding cast iron is notoriously difficult. The heat from welding repairs can introduce new stress points in the metal structure, leading to repeated failures in the same spot within 50,000 km.
• Who is this for? Those looking for the absolute cheapest upfront price, disregarding long-term reliability.

Option C: Volgen Power Aftermarket (The Smart Engineering Choice)

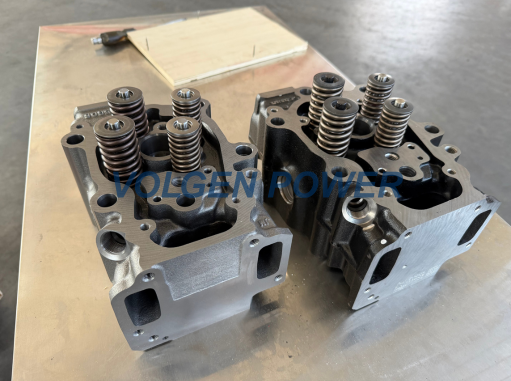

This is the modern solution for savvy fleet managers. A DC13 aftermarket cylinder head from Volgen Power is a 100% Brand New Casting.

• Material Science: We use high-grade Gray Iron or Compacted Graphite Iron (CGI) alloys that match the tensile strength and thermal conductivity of the original specification.
• Reverse Engineering + Optimization: We study the OEM design and, where possible, reinforce critical areas. If the OEM head tends to crack at the exhaust bridge, our casting molds ensure maximum wall thickness in that specific zone.
• No Core Charge: Unlike reman parts, you don't need to ship your old, cracked head back to us. This saves on shipping costs and administrative headaches.

Technical Anatomy of a Volgen Power Head

What actually constitutes "Quality" in an aftermarket head? It’s not just a buzzword; it’s measurable data.

1. Casting Wall Thickness & Uniformity

Cheap aftermarket heads (often from unverified sources) suffer from "core shift." This happens during casting when the internal sand molds move slightly, resulting in one wall being thick and the opposite wall being paper-thin.

• Volgen Protocol: We use precision robotic molding to ensure uniform wall thickness throughout the coolant passages. This guarantees even heat dissipation and prevents hot spots that lead to cracking.

2. Valve Seat Metallurgy

The valve seats endure the hardest life of any component, hammered thousands of times per minute.

• The Problem: Soft seats wear out (recession), causing valve lash to tighten and valves to burn. Too hard, and they can crack or damage the valves.
• The Solution: Volgen Power uses sintered alloy valve seats with high Cobalt and Chromium content. They are cryogenically treated to withstand the high exhaust temperatures of the DC13 engine without receding.

3. Surface Finish (Ra Value)

The seal between the head and the block relies on the cylinder head gasket. Modern multi-layer steel (MLS) gaskets require an incredibly smooth surface finish.

• Volgen Protocol: Our heads are CNC machined to a specific Surface Roughness Average (Ra) that meets Scania’s strict tolerance. A surface that is too rough will tear the gasket; one that is too smooth might not allow the gasket to "bite" correctly. We hit the perfect window.

The Economics of Ownership (TCO Analysis)

Let's do the math. Why does a "cheaper" Reman head often cost more?

Scenario A: The "Cheap" Reman

• Part Cost: $800
• Labor (Install): $1,000
• Truck Downtime: 2 Days
• Outcome: The weld repair fails after 6 months. You have to pay for the tow, the labor ($1,000) again, and a new part.
• Total Real Cost: $3,000+ (plus lost cargo revenue).

Scenario B: Volgen Power New Aftermarket

• Part Cost: $300
• Labor (Install): $1,000
• Truck Downtime: 2 Days
• Outcome: The new casting lasts for 5+ years.
• Total Real Cost: $1500.

The Conclusion: By spending slightly more upfront for a new Volgen casting, you save significantly by avoiding the "Second Repair."

Installation: The Forgotten Variable

Even the best Scania DC13 cylinder head will fail if installed incorrectly. We supply more than just parts; we supply knowledge. Here are critical checks for your mechanics:

1. Head Bolt Replacement: The DC13 uses Torque-to-Yield (TTY) bolts. These stretch permanently when tightened. Never reuse old head bolts. You must buy a new set.
2. Liner Protrusion (Height): Before installing the new head, you must measure how far the cylinder liners stick out from the block. If the protrusion is incorrect, the head gasket will not seal, regardless of the head quality.
3. Injector Sleeve Sealing: Ensure the copper or stainless steel injector sleeves are seated correctly. A leak here allows fuel to mix with coolant, a common diagnostic nightmare.
4. Torque Sequence: Strictly follow the 4-stage torque sequence. Rushing this step causes the head to warp instantly.

Supply Chain Reliability

In the logistics industry, "Available Now" is the most powerful feature a product can have.

• OEM Reality: Global supply chain disruptions can leave dealers waiting weeks for castings to arrive from Sweden or regional hubs.
• Volgen Power Reality: We maintain strategic stock levels of DC13 heads. We understand that our customers are businesses, not hobbyists. Our logistics network is designed for rapid dispatch to get your asset back on the road.

Conclusion: Make the Professional Decision

The Scania DC13 is a world-class engine that deserves a world-class repair. However, "world-class" doesn't have to mean "overpriced."

At Volgen Power, we have stripped away the brand markup and focused entirely on the engineering physics. By choosing our new aftermarket cylinder heads, you are prioritizing:

1. Longevity (New metal, no fatigue).
2. Performance (Correct tolerances and flow).
3. Value (Pricing that makes business sense).

Don't let a cracked head crack your annual budget. Trust the experts who understand the science behind the part.
