Cummins 6BT 5.9L Cylinder Head: OEM Part Numbers & Replacement Guide

Cummins Cylinder Head

⚡ Quick Answer

With over a decade of experience supplying Cummins replacement parts to fleet operators across 60+ countries, Volgen Power has seen every failure mode the Cummins 6BT 5.9L cylinder head can develop. The most common failures are injector sleeve corrosion, head gasket blowthrough from overheating, and valve seat wear. Replace with OEM head 3966454 (complete assembly) or 3966455 (bare casting). Full cross-reference tables, torque specifications, and sourcing options below.

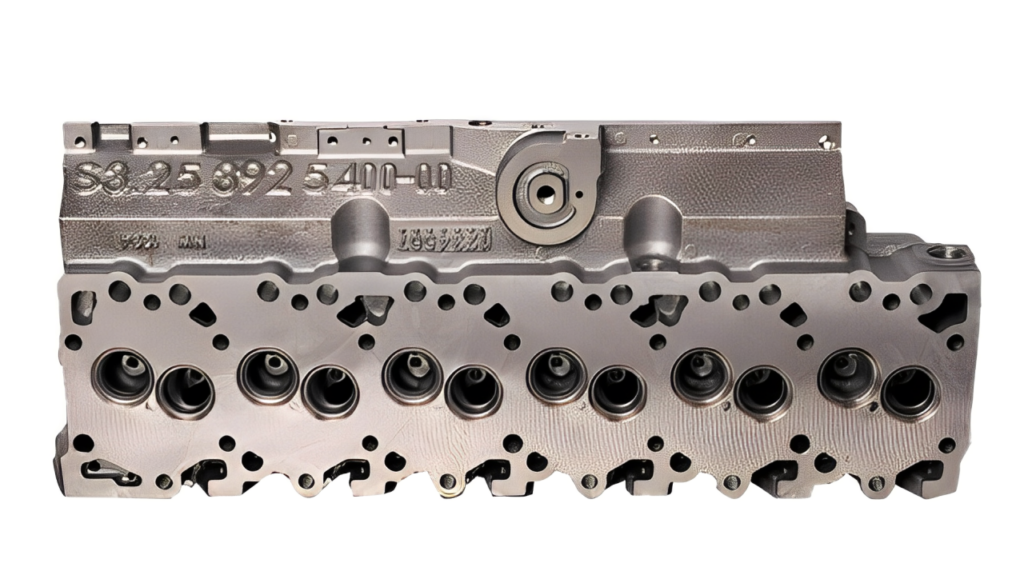

Cummins 6BT 5.9L cylinder head assembly OEM 3966454

Engine Overview: Cummins 6BT 5.9L

▶ Watch: Cummins 6BT Cylinder Head Torque Sequence

Video Reference: Follow this torque sequence when installing your Cummins 6BT cylinder head. Always use a calibrated torque wrench and refer to Cummins Service Bulletin 3810236 for exact specifications. TTY bolts must never be reused.

Specification Cummins 6BT 5.9L
Displacement 5.9L / 359 cu in
Configuration Inline-6, 2-valve/cyl
Bore x Stroke 102 x 120 mm
Power Output 160-230 hp
Torque 400-540 lb-ft
Head Part Numbers 3966454 / 3966455
Applications Medium truck, bus, industrial, pickup
Notable Application Dodge Ram 1990-2002

OEM Part Numbers for Cummins 6BT 5.9L Cylinder Head

The following table lists all OEM part numbers for the Cummins 6BT 5.9L cylinder head and related components. For comprehensive cross-references and upgraded replacements, visit Cummins Quick Serve Online.

Component OEM Part Number Notes
Complete Cylinder Head Assembly 3966454 Includes valves, springs, retainers
Bare Cylinder Head Casting 3966455 No valvetrain components
Head Gasket 3921630 / 4921631 4921631 is updated version
Valve Cover 3943887 Stamped steel, includes gasket
Head Bolt Set 3934500 TTY bolts – MUST replace
Intake Valve (x6) 3802410 Standard replacement
Exhaust Valve (x6) 3802411 High-temperature rated
Intake Valve Seat (x6) 3802405 Press-fit, requires machining
Exhaust Valve Seat (x6) 3802406 Press-fit, requires machining
Valve Guide (x12) 3802407 Standard size
Injector Sleeve (x6) 3934156 Copper, replace with head
EGR Gasket 4936086 For EGR-equipped engines

Cross-Reference Table (6BT Only)

Volgen Power Part Number OEM Part Number(s) Description
VPC-3966454 3966454 / 3966455 Complete head assembly / bare casting
VPC-3934156 3934156 Injector sleeve set (6 pieces)
VPC-3802420 3802420 / 4921631 Head gasket set
VPC-4921631 4921631 Updated head gasket

Common Failure Modes

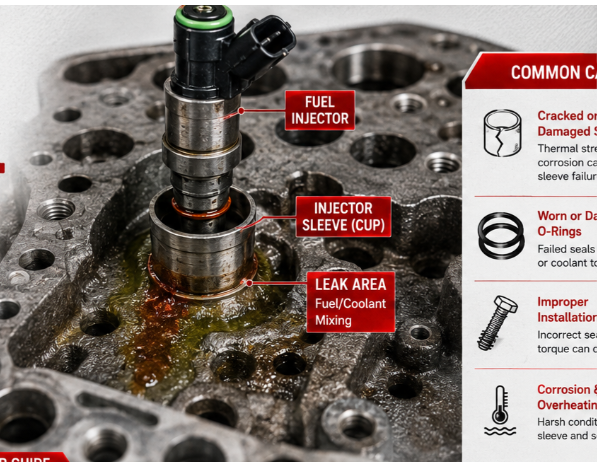

1. Injector Sleeve Corrosion

The injector sleeves (3934156) are copper and seal coolant passages. Over time, electrolysis and corrosion weaken the sleeves, causing coolant to leak into the combustion chamber or oil. Symptoms include white smoke, coolant loss, and milky oil. Always replace sleeves when replacing the cylinder head.

2. Head Gasket Failure (Blowthrough)

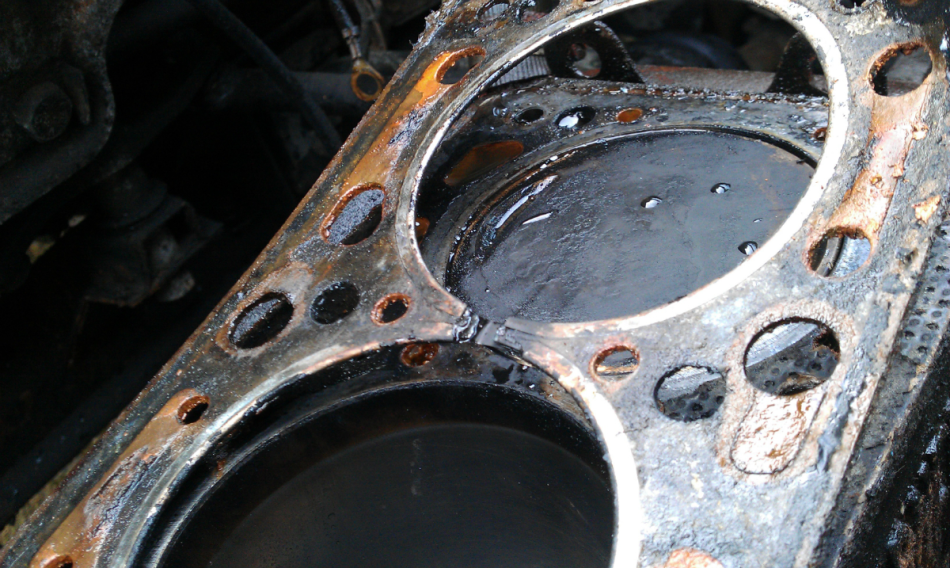

Cummins 6BT 5.9L head gasket blowthrough failure between combustion chamber and coolant passage

Overheating is the leading cause of head gasket failure on the 6BT. When the engine overheats, the head gasket can “blow through” between the combustion chamber and coolant passage. Symptoms include overheating, loss of coolant, and combustion gases in the coolant. Always check for warpage before installing a new gasket.

For a detailed guide to diagnosing and fixing diesel cylinder head problems, read our Diesel Cylinder Head Problems: 7 Common Issues, Causes & OEM Replacement Solutions.

3. Valve Seat Wear

The exhaust valve seats (3802406) can wear over time, especially in high-RPM or high-load applications. Symptoms include loss of compression, misfires, and excessive valve clearance. Replacement requires press removal and machining for proper seat installation.

4. Cracks Between Valves

Thermal cycling can cause cracks to develop between the intake and exhaust valve seats. These cracks can lead to compression loss and coolant intrusion. Magnaflux or dye penetrant testing is recommended during inspection.

5. Warpage from Overheating

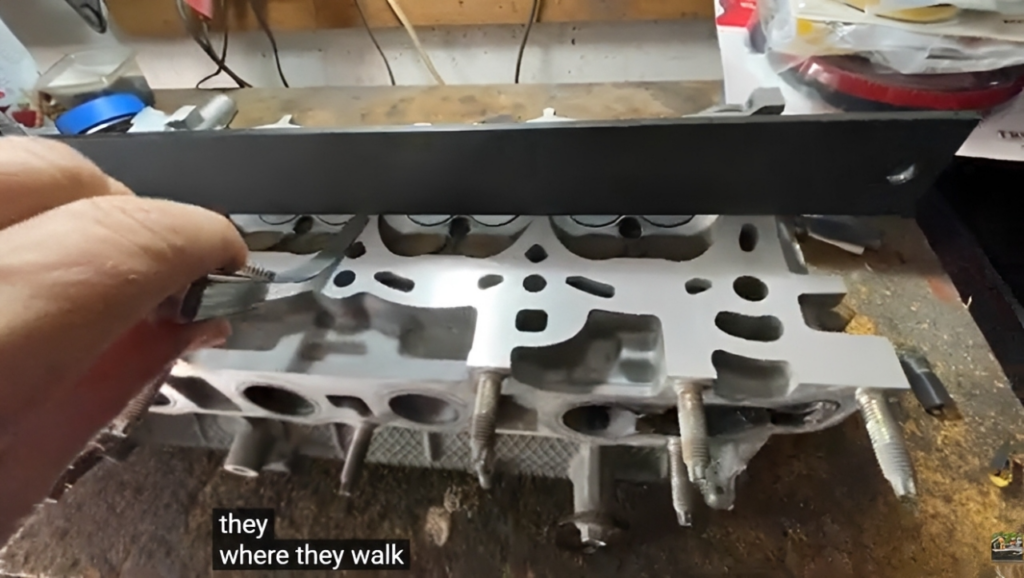

Checking Cummins 6BT cylinder head surface warpage with straight edge and feeler gauge

Excessive heat causes the cylinder head to warp. A warped head will not seal properly, even with a new gasket. Maximum allowable warpage is 0.002″ (0.05mm) across the head surface. Machine or replace if warpage exceeds this specification.

Torque Specifications

Head stud torque procedure | Cummins Diesel Forum

Important: Reference Cummins Service Bulletin 3810236. TTY (Torque-To-Yield) bolts MUST NOT be reused.

Fastener ft-lbs Nm Notes
Head Bolts (TTY 3-step) 60 → 80 → 90° + 90° 81 → 108 → 122 + 90° Always use NEW bolts
Rocker Arm Shaft 24 32 —
Injector Hold-Down 15 20 —
Valve Cover 10 14 —
Intake Manifold 35 47 —
Exhaust Manifold 35 47 —
Cross-over Tube 24 32 —

⚠️ Warning: Head bolts on the 6BT are torque-to-yield (TTY) and are designed for single-use only. Always install new head bolts (3934500) when replacing the cylinder head. Reusing TTY bolts can result in head gasket failure and costly engine damage.

Repair vs. Replacement: What’s Right for Your Engine?

When faced with cylinder head problems, you have three options:

  • Repair (Machine & Rebuild): If the head is not cracked and warpage is within spec, you can machine the surface, replace valve seats/guides, and install new injector sleeves. Cost: $400-800, depending on machine work required.
  • Replace with Rebuilt Head: A professionally rebuilt head includes new valves, seats, guides, and surfacing. Cost: $800-1,200. Good option if the budget is tight and the rebuilder is reputable.
  • Replace with New OEM Head: The most reliable option. New head (3966454) comes fully assembled with all new components. Cost: $1,400-2,000. Recommended for fleet vehicles and heavy-use applications.

Product Cards

6BT Cylinder Head Assembly (3966454)

Complete OEM cylinder head assembly for Cummins 6BT 5.9L engines. Includes pre-installed valves, springs, retainers, and injector tubes. Ready to install.

  • OEM Part Number: 3966454
  • Applications: Dodge Ram 5.9L, medium-duty trucks, industrial engines
  • 12-month warranty
  • View Product →

Head Gasket Set (3802420 / 4921631)

Complete head gasket set for Cummins 6BT 5.9L. Includes head gasket, injector tube seals, and all necessary O-rings. The 4921631 is the updated version with improved sealing.

  • OEM Part Numbers: 3802420, 4921631
  • Multi-layer steel (MLS) construction
  • View Product →

Injector Sleeve Set (3934156)

Set of 6 copper injector sleeves for Cummins 6BT 5.9L. These sleeves seal the injector tubes and prevent coolant intrusion. Always replace when removing injectors or replacing the cylinder head.

  • OEM Part Number: 3934156 (set of 6)
  • Copper construction for optimal heat transfer
  • View Product →

Head Bolt Set (3934500)

Complete set of 26 TTY (Torque-To-Yield) head bolts for Cummins 6BT 5.9L. These bolts are engineered for single-use only – always replace when removing the cylinder head.

  • OEM Part Number: 3934500
  • Set of 26 bolts (main studs and auxiliary bolts)
  • View Product →

FAQs.


?1. How do I know if my 6BT cylinder head needs replacement?
?Common symptoms include: white smoke from exhaust (coolant burning), overheating, loss of coolant without visible leaks, milky engine oil (coolant contamination), external coolant leaks around the head, loss of compression in one or more cylinders, and visible cracks between valve seats. A compression test and cooling system pressure test can confirm cylinder head integrity.
?2. What is the difference between the 6BT and 6CT cylinder heads?
?The 6BT 5.9L and 6CT 8.3L are different engines with different cylinder head designs. The 6BT head (3966454/3966455) is for the 5.9L inline-6, while the 6CT uses a different head for the 8.3L engine. They are not interchangeable. For 6CT 8.3L cylinder head information, see our 6CT 8.3L cylinder head guide (sister article).
?3. Can I use a rebuilt head instead of a new OEM head?
?Yes, a professionally rebuilt head can be a cost-effective option. However, ensure the rebuilder pressure-tests the head for cracks, replaces all valve seats and guides, and machines the surface to proper flatness. For fleet vehicles or heavy-use applications, a new OEM head (3966454) is recommended for maximum reliability.
?4. What causes injector sleeve failure on the 6BT?
?Injector sleeve failure is typically caused by electrolysis (electrically induced corrosion), coolant chemistry imbalance (incorrect antifreeze mixture), and age. The copper sleeves (3934156) degrade over time, allowing coolant to leak into the combustion chamber or oil. Always replace injector sleeves when replacing the cylinder head.
?5. How long does it take to replace a 6BT cylinder head?
?For a qualified mechanic, replacing the cylinder head on a Cummins 6BT 5.9L takes approximately 8-12 hours. This includes removing the old head, cleaning the block surface, installing new head gaskets and bolts, and properly torquing all fasteners. Additional time may be needed if the injector sleeves or valve train components require replacement.
?6. Are the 6BT cylinder heads interchangeable with other Cummins engines?
?No, the 6BT cylinder head is specific to the 5.9L 6BT engine. It is not interchangeable with the 4BT 3.9L, 6CT 8.3L, ISB 5.9L, or QSB 5.9L, although some components may be shared. Always verify your engine series and displacement before ordering a replacement head.
?7. Do you ship Cummins 6BT cylinder heads internationally?
?Yes, Volgen Power ships Cummins 6BT cylinder heads and components to over 60 countries. We offer express shipping options and work with reliable freight forwarders to ensure safe delivery. Shipping costs and delivery times vary by destination. Contact our sales team for a shipping quote.
?8. How much does a Cummins 6BT cylinder head weigh?
?A bare 6BT cylinder head (3966455) weighs approximately 95-105 lbs (43-48 kg). A complete cylinder head assembly (3966454) with valves, springs, and retainers weighs approximately 120-130 lbs (54-59 kg). Shipping weight, including packaging, is typically 140-160 lbs.
?9. What are the torque specs for Cummins 6BT head bolts?
?The 6BT uses torque-to-yield (TTY) head bolts that must be replaced each time they are removed. The torque sequence is: Step 1: 60 ft-lbs (81 Nm), Step 2: 80 ft-lbs (108 Nm), Step 3: 90 degrees + 90 degrees. Always use new head bolts (3934500) and follow the proper torque sequence starting from the center and working outward.
?10. Can I drive with a cracked cylinder head?
?Driving with a cracked cylinder head is not recommended. A cracked head can lead to coolant loss, overheating, hydrolock (coolant entering the combustion chamber and preventing piston movement), and catastrophic engine failure. If you suspect a cracked head, stop driving immediately and have the vehicle towed to a repair facility.
?11. What is the difference between 3966454 and 3966455?
?3966454 is a complete cylinder head assembly that includes pre-installed valves, valve springs, retainers, and injector tubes. 3966455 is a bare cylinder head casting with no valvetrain components. If you choose the bare casting (3966455), you’ll need to transfer your existing valvetrain components (if in good condition) or purchase new valves, seats, guides, and springs separately.
?12. How do I identify my Cummins 6BT engine serial number?
?The engine serial number (ESN) for a Cummins 6BT is located on the data plate mounted on the gear housing, on the driver’s side near the fuel pump. The serial number is 8 digits long. You can also find the ESN on the engine’s valve cover or in the vehicle’s documentation. For a complete guide on identifying Cummins engine serial numbers, see our Cummins NT855/KTA19 Cylinder Head Guide guide.

Conclusion

The Cummins 6BT 5.9L is a legendary engine known for its durability, but like all engines, it can suffer from cylinder head problems. Whether you need a complete head assembly (3966454), a bare casting (3966455), or related components like head gaskets and injector sleeves, Volgen Power has you covered with OEM-quality parts and worldwide shipping.

If you’re unsure which parts you need or want to confirm compatibility with your engine, our technical team is here to help. Contact us today for expert advice and competitive pricing.

Volgen Power – Your trusted source for Cummins replacement parts. Serving fleet operators and diesel enthusiasts in 60+ countries.
