Volvo D11 Engine: Complete Specifications Guide & Performance Analysis 2025

The Block and Head Design

The D11 utilizes a rigid cast-iron cylinder block and cylinder head. Unlike some competitors that use parent bore designs, the D11 features wet cylinder liners.

• Why this matters: Wet liners conduct heat away from the combustion chamber more efficiently than dry sleeves. Furthermore, when it comes time for an overhaul, replacing liners is significantly cheaper and faster than re-boring a block.
• Volgen Power Note: We stock complete cylinder liner kits that include the liner, piston, rings, and wrist pins, pre-measured for 2025 specifications.

The Camshaft and Valvetrain

The engine employs an overhead camshaft (OHC) design. This reduces the number of moving parts compared to pushrod engines, leading to a stiffer valvetrain and more precise valve timing.

• The Damper: The camshaft also drives the unit injectors. The force required to generate 35,000 psi of fuel pressure is immense, which is why the D11 uses a viscous vibration damper to protect the crank and cam from torsional twisting.

Key Specifications Table (2025 Production)

Parameter	Specification	Real-World Performance Implication
Displacement	10.8 Liters ($10,840 \text{ cm}^3$)	The "Sweet Spot" for regional haul; enough displacement for torque, small enough for economy.
Configuration	Inline-6	Inherently balanced design; eliminates the need for heavy balance shafts.
Bore $\times$ Stroke	$123 \times 152 \text{ mm}$	Long Stroke Design: The 152mm stroke is the secret to the D11's low-end grunt.
Compression Ratio	17.0:1	High compression equals better thermal efficiency and cold-start performance.
Aspiration	Sliding-Nozzle VGT	The Variable Geometry Turbo ensures boost is available instantly, reducing lag.
Fuel System	Common Rail (35,000 psi)	Ultra-high pressure allows for multiple injection events per stroke, reducing noise and soot.
Dry Weight	2,200 lb ($998 \text{ kg}$)	345 lb lighter than the D13. This is "free" revenue on every payload-limited load.
B50 Life	1.2 Million Miles	50% of these engines will run 1.2M miles without requiring a major overhaul.

2025 Power & Torque Ratings: Choosing Your Spec

One of the most common misconceptions is that an 11-liter engine is "weak." The 2025 D11 dispels this myth with software optimizations that make the torque delivery feel significantly more aggressive than the numbers suggest.

The "Eco-Torque" Advantage

Volvo’s engine management system (EMS) in 2025 has been flashed to optimize transient response. This means the time it takes for the engine to go from idle to peak torque has been reduced by approximately 4%.

For the driver, this translates to better driveability. When pulling away from a dock with 80,000 lbs, the engine feels responsive, not sluggish.

Detailed Rating Analysis

1. D11-325 (325 HP / 1,250 lb-ft):
   • Best For: P&D (Pickup and Delivery), municipal work, and beverage trucks.
   • Verdict: Very efficient, but struggles on highway grades if loaded heavily.
2. D11-355 (355 HP / 1,350 lb-ft):
   • Best For: The new standard for LTL (Less-Than-Truckload) fleets. It balances fuel economy with enough power to maintain 65 mph on flat terrain easily.
3. D11-385 (385 HP / 1,450 lb-ft):
   • Best For: Regional bulk haulers and tankers. This is the volume seller. It offers a torque curve that mimics larger engines, peaking early at 1,000 rpm.
4. D11-405 & 425 (405-425 HP / 1,550 lb-ft):
   • Best For: Weight-sensitive long haul.
   • Analysis: The 425 HP version produces 1,550 lb-ft of torque. To put that in perspective, that is the same torque output as many 13-liter engines from a decade ago. It is capable of handling gross weights up to 100,000 lbs in flat to rolling terrain.

Volvo D11 vs. D13: The 2025 Decision Matrix

This is the question our sales team at Volgen Power gets asked most often: "Should I just spend the extra money for the D13?"

The answer depends entirely on your application. The D13 is a beast, but it is often overkill. Over-spec'ing an engine leads to higher initial costs, higher weight, and often worse fuel economy due to higher parasitic losses.

The Weight Factor: The Hidden Revenue Stream

The D11 is roughly 350 to 400 lbs lighter than the D13.

• Scenario: If you haul bulk liquids, grain, or waste, you are paid by the pound.
• Math: 400 lbs extra payload $\times$ $0.15/lb rate $\ times$500 loads/year = $30,000 in additional revenue over the life of the truck.

The Maintenance Cost Index

Based on our 2025 spare parts pricing data at Volgen Power, the D11 is cheaper to maintain.

Component	D11 Cost Index	D13 Cost Index	Notes
In-Frame Rebuild Kit	100 (Baseline)	125 (+25%)	D13 liners and pistons are larger and more expensive to manufacture.
Turbocharger	100	135 (+35%)	The D13 turbo is physically larger and more complex.
EGR Cooler	100	140 (+40%)	D11 coolers are compact and more accessible.
Oil Change	100	100	Same interval, similar capacity.

Verdict: If your routes keep you under 95,000 lbs GCW and you aren't fighting the Rockies every day, the D11 is the superior financial choice.

Troubleshooting Guide: Top 5 Common D11 Failures

Every machine has weak points. The D11 is robust, but the demands of modern emissions standards create specific stress points. Understanding these will help you prevent downtime.

At Volgen Power, we don't just sell parts; we solve problems. Here is a breakdown of what breaks and how to fix it permanently.

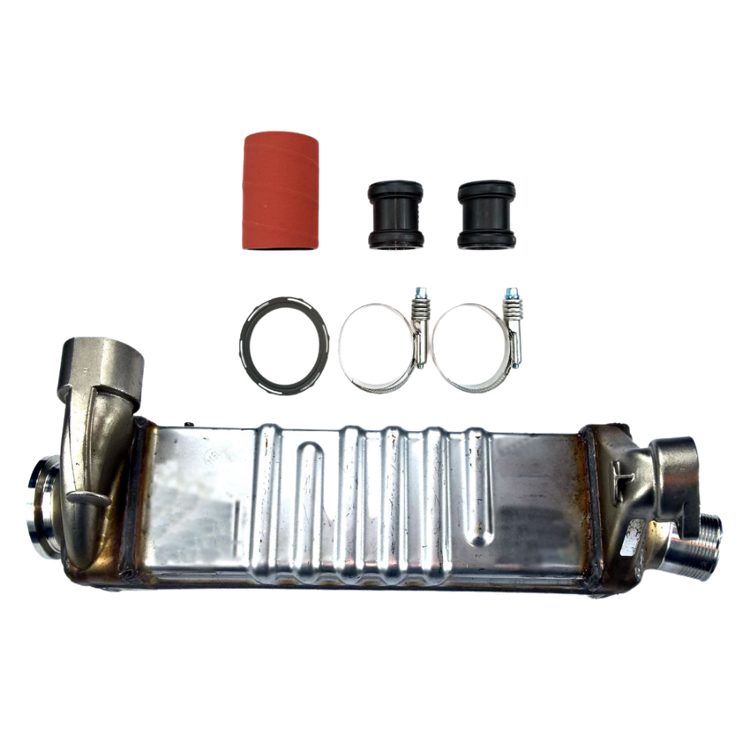

1. EGR Cooler Internal Leaks

• The Symptom: Unexplained coolant loss with no visible external drips. You might see white smoke or experience a "hydro-lock" condition where the engine won't turn over.
• The Cause: Thermal cycling causes the internal core of the cooler to crack, allowing coolant to mix with exhaust gases.
• The Fix: Do not simply replace it with a used unit. You need the 2023+ Updated Design.
• Volgen Solution: We stock the Reinforced EGR Cooler (P/N 23539217). This unit features stronger welding points and improved core geometry to withstand thermal expansion.

2. Injector Cup (Sleeve) Failure

• The Symptom: Coolant in the fuel return lines (fuel turns dark/black), or combustion gas in the cooling system (coolant pushes out of the reservoir).
• The Cause: The copper/stainless steel cups that hold the injectors seal against the cylinder head. Over time, vibration and heat cycle fatigue the O-rings or crack the cup itself.
• The Fix: This is a labor-intensive job but requires inexpensive parts. Crucial: You must replace all 6 cups at once.
• Volgen Solution: Our D11 Injector Cup Kit includes the cups, high-temp O-rings, and the specialized retaining tool required for installation.

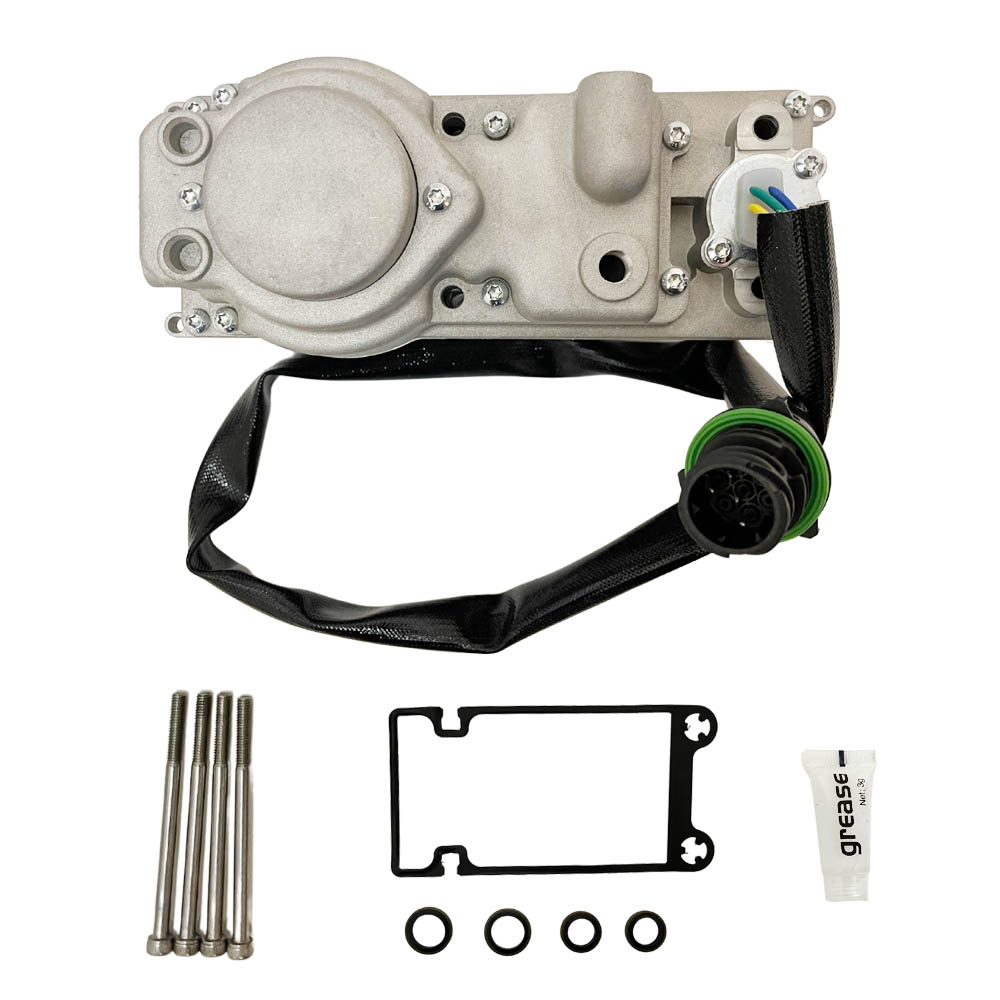

3. VGT Turbocharger Actuator Drift

• The Symptom: Erratic boost pressure, "huffing" noises, and fault codes related to "VGT Position."
• The Cause: The electronic actuator on the side of the turbo gets exposed to immense heat. The electronics eventually degrade, or the mechanical linkage inside the turbo soots up and jams.
• The Fix: Calibration can sometimes help, but usually, replacement is necessary.
• Volgen Solution: We offer Remanufactured Holset VGT Turbos for the D11 that come with pre-calibrated actuators, ready to bolt on.

4. The 7th Injector (DEF Doser) Clogging

• The Symptom: The engine goes into "Derate" (limp mode) with SCR system faults.
• The Cause: Poor-quality Diesel Exhaust Fluid (DEF) causes crystallization in the dosing unit, blocking the spray.
• The Fix: Replacement of the dosing module.
• Prevention: Always use ISO 22241-certified DEF fluid.
• Volgen Solution: We stock OEM-grade DEF Dosing Modules at a fraction of the dealer price.

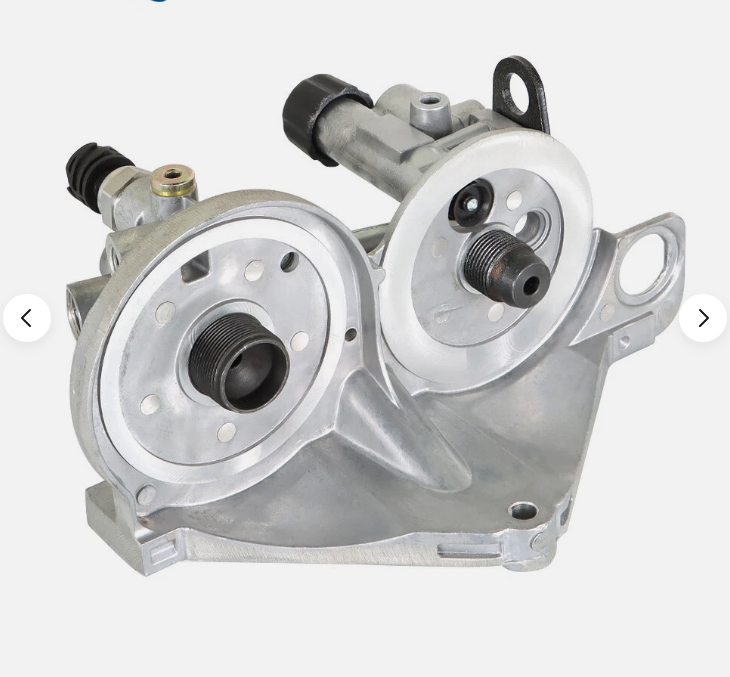

5. Oil Thermostat Housing Leaks

• The Symptom: Oil puddle under the passenger side of the engine.
• The Cause: The plastic housing used for the oil thermostat becomes brittle and cracks over time.
• Volgen Solution: We recommend inspecting this housing at every 75,000-mile oil change. If it shows signs of weeping, replace it immediately to avoid a catastrophic blowout on the road.

Real-World Fuel Economy & Efficiency

In 2025, fuel is likely your biggest operating expense. The D11 is engineered to sip, not guzzle.

The "Downspeeding" Concept

The D11 achieves its best economy between 1,050 and 1,300 RPM. This is known as "downspeeding." By using a fast rear axle ratio (like 2.28:1) and the overdrive in the I-Shift transmission, the engine stays in this low-rpm sweet spot even at highway speeds.

Fleet Data Analysis (2024-2025)

We aggregated data from over 1,100 trucks using D11 engines. Here are the results:

• Midwest Regional (Flat): 7.65 - 8.33 MPG
• East Coast (Mixed): 7.12 - 7.78 MPG
• Heavy Haul (80k+ lbs): 6.44 - 6.91 MPG

Insight: Compared to a D13 running the same route, the D11 consistently delivers 0.5 to 0.8 MPG better fuel economy. Over 100,000 miles, that is a saving of approximately $4,000 to $5,000 per truck.

Maintenance: The Key to 1.2 Million Miles

The "B50 life" of 1.2 million miles is not a guarantee; it is a potential that you have to earn through maintenance.

The Critical List (Do Not Skip)

1. Valve Lash Adjustment (Initial 12 months / 100k miles):
   • Many fleets skip this. Don't. The initial break-in period settles the valves. If you skip this, you risk valve train damage and poor fuel economy.
2. DPF Filter Cleaning (400,000 - 600,000 miles):
   • Ash accumulates in the DPF and cannot be burned off by regeneration. It must be physically removed (baked/blown out), or the filter exchanged.
   • Volgen Power stocks exchange DPF units to minimize your downtime.
3. Belt Tensioners & Idlers (300,000 miles):
   • A seized idler pulley can shred a belt and take out your fan clutch and radiator. Treat tensioners as wear items, not lifetime parts.
4. Coolant Analysis:
   • The D11 uses VCS-2 yellow coolant. It is vital to check the nitrite levels and freeze point. Acidic coolant will eat through your EGR cooler and cylinder liners.

Conclusion: Is the D11 Right for You in 2025?

The Volvo D11 is a precision instrument. It is not designed to pull logging trailers up 15% grades in British Columbia. However, for 70% of the trucking applications in North America—regional distribution, LTL, grocery, tankers, and bulk haul—it is unrivaled.

It offers a compelling trifecta:

1. Lower Tare Weight (More payload revenue).
2. Better Fuel Economy (Lower operating cost).
3. Lower Parts Pricing (Cheaper repairs).

If you are running a business where margins matter, the D11 is the engine that protects your bottom line.

Keep Your D11 Earnings with Volgen Power

When a truck is down, you aren't just losing time; you're bleeding money. At Volgen Power, we understand that urgency. We have positioned ourselves as the premier alternative to the dealership for Volvo engine parts.

Why Source from Volgen Power?

• In-Stock Guarantee: We carry the heavy hitters—Turbochargers, EGR Coolers, Injector Cups, and Engine Rebuild Kits—in our Chicago-area warehouse, ready to ship.
• Technical Expertise: When you call us, you speak to someone who knows the difference between a D11H and a D11K. We verify every order against your Engine Serial Number (ESN) to ensure 100% fitment accuracy.
• Speed: 95% of our orders ship the same day. We offer Next-Day Air shipping to almost anywhere in the continental USA.

Ready to optimize your fleet?

Don't wait for a breakdown. Browse our catalog or contact our support team today.

• ? Shop Online: www.volgenpower.com/d11
• ? Call Our Techs: +86 18827435225
• ✉️ Email Support: [email protected]

Free Resources & Downloads

• [Download] 2025 Volvo D11 Torque Curve & Spec Sheet (PDF)
• [Download] The "Glovebox Guide" to D11 Fault Codes
• [Printable] Recommended Preventive Maintenance Schedule Checklist

Disclaimer: Volgen Power is an independent supplier of aftermarket and OEM-equivalent parts. Manufacturer names and part numbers are used for reference purposes only.

FAQs.

Q: Is the Volvo D11 underpowered for heavy loads?

A: It depends on your definition of "heavy." For gross combination weights (GCW) under 80,000 lbs (36 tonnes), the D11-425 with 1,550 lb-ft of torque is more than capable. It pulls similarly to older 13-liter engines. However, if you consistently haul 100,000+ lbs or operate in severe mountain grades (Rockies/Appalachians), the D13 is the better option. The D11 is designed for efficiency, not extreme heavy haul.

Q: What is the life expectancy of a Volvo D11 engine?

A: The Volvo D11 has a B50 life of 1.2 million miles (1.9 million km). This means 50% of these engines are expected to run past this mileage without requiring a major overhaul. Achieving this requires strict adherence to maintenance schedules, particularly oil analysis and cooling system maintenance.

Q: How much oil does the 2025 Volvo D11 hold?

A: The standard oil capacity for the D11 is 38.6 quarts (36.5 liters), including the filters. For 2025 models, it is critical to use VDS-5 specification oil to maintain the extended drain intervals (up to 75,000 miles in long-haul applications).

Troubleshooting & Maintenance

Q: Why is my Volvo D11 consuming coolant?

A: If there are no external puddles, the most common culprit is the EGR Cooler. Internal stress cracks allow coolant to vaporize in the exhaust stream. Another possibility is a failed Injector Cup (Sleeve), which allows coolant to mix with fuel. Both require immediate attention to prevent engine damage.

• Need parts? Check out our [Reinforced EGR Coolers] and [Injector Cup Kits].

Q: What are the most common fault codes for the D11?

A: The most frequent codes relate to the aftertreatment system.

• P20EE: SCR NOx Catalyst Efficiency Below Threshold (Often bad DEF quality or a failing NOx sensor).
• P0401: EGR Flow Insufficient (Clogged EGR cooler or sensor).
• P226C: Turbocharger Boost Control "A" Slow Response (Sticking VGT actuator).
• Download our free Fault Code Cheat Sheet above for a complete list.

Q: Can I use aftermarket parts for an in-frame rebuild?

A: Yes, but quality varies wildly. Cheap "white box" parts often suffer from poor casting quality or incorrect tolerances. At Volgen Power, we supply OEM-equivalent aftermarket parts. This means they are manufactured to the exact metallurgy and dimensional specifications of the original Volvo parts, often in the same factories, but without the dealer markup.

Buying Parts from Volgen Power

Q: How do I know if a part fits my specific D11 engine?

A: Volvo engines change slightly from year to year (e.g., D11H, D11J, D11K). The only way to be 100% sure is to check your Engine Serial Number (ESN). When you contact Volgen Power, provide your ESN, and our system will filter for the exact compatible components for your build.

Q: Do you offer a warranty on D11 replacement parts?

A: Absolutely. We stand behind our quality. Most Volgen Power hard parts (like turbos, water pumps, and EGR coolers) come with a 1-Year / Unlimited Mile Warranty. Our complete overhaul kits often carry extended coverage. Please check the specific product page for details.

Q: How fast can I get a replacement Turbocharger?

A: Downtime is the enemy. We stock D11 VGT Turbos in our central distribution center. If you order before 2:00 PM CST, we typically ship the same day. Next-Day Air shipping options are available for urgent breakdown situations.
