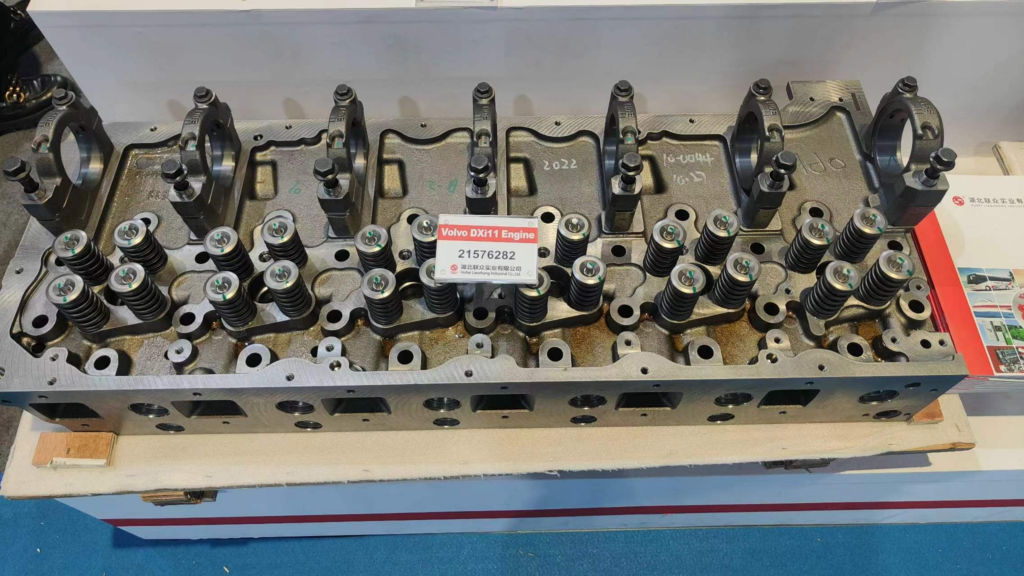

Repair or Replace? The Volvo D11 Cylinder Head Dilemma for Sri Lanka’s Heavy Haulers

When this critical engine component—the Volvo D11 cylinder head—faces failure, it triggers a high-stakes decision: cylinder head repair vs replacement. This is more than a technical choice; it is a crucial business decision impacting your entire operation's Total Cost of Ownership (TCO).

This guide serves as your definitive decision-making framework, tailored specifically for the challenges faced by Volvo truck engine rebuild teams in the Sri Lankan market. We will move past superficial cost comparisons and delve into the necessary cylinder head pressure test standards, the risks of cylinder head warping, and the true long-term value of Volvo D11 cylinder head replacement. By the end, you will possess the knowledge and value to make an authoritative choice, ensuring your fleet remains productive and reliable.

Diagnosis Checklist: Is Your D11 Cylinder Head in Crisis?

Quick, accurate diagnosis is vital to prevent minor issues from becoming catastrophic failures, potentially leading to a costly Volvo D11 engine overhaul. Users often search for Volvo D11 cylinder head symptoms to confirm the problem. Recognizing these signs instantly allows you to take immediate action and potentially avoid the engine reporting problems.

Symptom Category	Observable Sign	Potential Cause & Severity
Cooling & Fluids	White smoke from the exhaust (excessive steam).	Coolant leak into the combustion chamber, likely blown head gasket or severe crack. Critical.
	Oil appears milky or frothy (emulsification).	Coolant mixing with oil (major internal leak). Requires immediate shutdown. Critical.
	Unexplained, rapid coolant loss.	Internal or external crack; potentially damaged cylinder head cooling system. High Risk.
Performance	Significant loss of power or rough idling.	Low compression due to poor seal (gasket, crack, or valve seat damage). Requires Volvo D11 compression test.
	Consistent engine overheating.	Blocked coolant passages or combustion gases pressurizing the cooling system. High Risk.
Visual & Component	Visible oil leaks around the head-to-block joint.	Coolant leak into the combustion chamber, likely blown head gasket, or severe crack. Critical.
	Ticking noise from the valvetrain.	Worn valve guides, potentially requiring a Volvo D11 valve job.

Necessary Diagnostic Steps Before Decision

Before you lift a wrench, a few simple checks can guide your decision toward Volvo D11 cylinder head replacement or a basic repair:

• Pressure Testing: A definitive cylinder head pressure test confirms internal leaks between the oil/coolant passages and the combustion chamber, indicating a crack or porosity that often makes repair uneconomical.
• Warping Measurement: Use a precision straight edge to measure the head's flatness. If the distortion exceeds the manufacturer’s specified tolerance, especially in the longitudinal axis, extensive resurfacing is required, altering critical dimensions.
• Oil Analysis: Send an oil sample for analysis. Elevated sodium or potassium levels strongly indicate coolant contamination, a smoking gun for a crack or gasket failure.

The Cost-Benefit Analysis: Repair vs. Replacement

While a local cylinder head repair cost might seem lower upfront, the economic value lies in assessing the long-term risk management and operational stability.

When to (Cautiously) Consider Repair

Repairing a heavy-duty heavy duty truck cylinder head is a calculated risk, only viable under specific, minor conditions:

1. Isolated Valve Damage: If the casting body is certified crack-free by magnetic particle inspection and only requires minor valve seat or guide replacement (Volvo D11 valve job).
2. Minimal Warping: Less than $0.1$ mm (0.004 inches) of measured warp, allowing for a single, light cylinder head resurfacing without compromising the valve depth or compression height.
3. Injector Sleeve Replacement: Damage isolated to the Volvo D11 injector sleeve bore, provided the main body of the head is sound.

⚠️ Expert Advice on Repair (Risk Management):

Any attempt at cylinder head crack repair (welding or pinning) on a Volvo D11, especially in the high-stress bridge between the valve seats, carries an extremely high risk of secondary failure. The intense thermal cycling of a modern diesel engine often re-opens these stressed areas within months, resulting in double the labor cost and prolonged downtime. Do not compromise reliability for short-term savings.

The Compelling Case for Replacement: The Total Cost of Ownership

For maximizing operational value and minimizing financial exposure, a new or certified remanufactured Volvo D11 cylinder head replacement is the professional choice.

Cost Factor	Repair/Rebuild (Uncertainty)	Replacement (Certainty & Quality)	Value Proposition
Initial Cost	Low (Labor + Machine Shop)	High (New Part + Shipping)	Economic Value: Lower upfront, but high hidden risk.
Hidden Cost	High risk of secondary failure, costly parts like the Volvo D11 head bolt torque set, and potential engine damage.	Low/Zero; cost is fixed and predictable.	Risk Management: Eliminates unpredictable repeat labor and breakdown costs.
Downtime	Variable (Diagnosis + Machine Shop Time + Assembly + RE-FAILURE).	Fixed (Installation + Immediate Return to Service).	Operational Value: Guaranteed maximum vehicle availability and revenue generation.
Warranty	Limited (usually only on the repair work itself, not the casting).	Comprehensive (12-24 months, unlimited mileage, e.g., Volgen Power's guarantee).	Knowledge Value: Protects your investment against manufacturing defects.
Performance	Compromised (due to tolerance changes from skimming).	Restored to OE factory specifications (Optimal power and fuel efficiency).	Economic Value: Lower long-term fuel consumption.

Technical Deep Dive: Why Casting Quality is Non-Negotiable (Material Science)

The heart of the Volvo D11 cylinder head debate lies in metallurgy. The quality of the cast iron used dictates the head’s ability to withstand extreme stress.

The Dangers of Inferior Aftermarket Castings

Volvo D11 engine parts from unverified sources often use lower-grade cast iron with inherent structural weaknesses:

1. Porosity: Microscopic air pockets within the casting. Under the high internal pressures of the cylinder head cooling system, these areas become stress points, leading to failure even under normal operating conditions.
2. Thermal Fatigue: Low-grade iron fatigues faster under the intense thermal cycling unique to the D11, rapidly causing cylinder head warping and micro-cracking in the valve bridge areas.

Actionable Advice: When sourcing a replacement for your Volvo truck cylinder head Sri Lanka fleet, always demand proof of quality certification like I.A.T.F. 16949. This ensures the material and manufacturing process meet strict automotive standards, providing the necessary Knowledge, value, and risk mitigation.

Understanding Volvo D11 Head Bolt Torque Specs

Proper installation is as crucial as part quality. The Volvo D11 head bolt torque procedure is a multi-step sequence designed to apply a precise, uniform clamping force.

Yield-to-Torque Bolts: Many modern engines use Torque-to-Yield (TTY) bolts, which are designed to stretch permanently upon initial use. They must never be reused. Reusing them guarantees uneven clamping force, leading to immediate Volvo D11 blown head gasket failure, often blamed incorrectly on the gasket itself.

Localized Solutions: Sourcing and Support in Sri Lanka

For heavy truck engine parts procurement in Colombo, Kandy, or Hambantota, logistics speed and localized support are key to minimizing costly downtime. Sourcing from a distant, impersonal supplier often leads to customs delays and technical mismatches. Volgen Power bridges this gap, combining global manufacturing precision with a localized service approach designed specifically for Sri Lankan fleet operators.

A. Finding a Reliable Volvo Truck Parts Supplier in Sri Lanka: Why Volgen Power?

The quickest replacement is only worthwhile if the quality is assured. As a specialized manufacturer and global supplier of Volvo D11 cylinder heads, Volgen Power offers distinct advantages over generic trading houses or risk-laden local scrap yards:

1. Direct Manufacturer Assurance (OE-Level Quality): While the search for a "used Volvo D11 cylinder head" is common in local markets like Panchikawatta, the risk of inheriting latent damage—such as invisible micro-cracks or excessive surface skimming—is simply too high for commercial fleets.
   • The Volgen Advantage: We provide brand new cylinder heads manufactured to strict I.A.T.F. 16949 standards. You receive a factory-fresh unit with zero wear history, completely eliminating the gamble of used parts.
2. Precision Fitment Verification: We don't just guess. We require you to provide your VIN or old part number. We verify that our replacement head matches your specific Volvo D11 cylinder head casting number and emission type (Euro 3/4/5/6). This ensures correct alignment with your engine block and the precise configuration of the Volvo D11 injector sleeve, preventing costly installation errors common with mismatched local parts.
3. Streamlined Logistics to Sri Lankan Ports: We understand the nuances of Sri Lankan import regulations. Whether you need CIF delivery to Colombo Port or direct coordination with your clearing agent, our logistics team handles the critical documentation (Commercial Invoice, Packing List, Certificate of Origin) to ensure swift customs clearance. We reduce the "logistics lag" that keeps your trucks off the road.

B. Reducing Replacement Time: The Volgen Power Efficiency Model

Time is money in logistics. We expedite your cylinder head replacement time through:

• Ready-to-Ship Inventory: Unlike intermediaries who must source parts after you order, Volgen Power maintains a strategic stock of high-demand Volvo D11 cylinder heads. Your order is typically dispatched within 24-48 hours of confirmation, not weeks later.
• "Plug-and-Play" Complete Assemblies: To save your workshop valuable labor hours and reduce dependency on local machine shops, we offer complete cylinder heads pre-assembled with new valves, springs, and guides. This solution significantly reduces the risk of assembly errors and gets your truck back on the road days faster.
• Factory-Direct Pricing: By bypassing multiple layers of middlemen, Volgen Power offers factory-direct pricing. You get OE-level material durability at a price point that significantly lowers your Total Cost of Ownership (TCO) compared to buying through authorized dealer networks in Sri Lanka.

Transform Your Procurement Experience: Don't let uncertain lead times and questionable used parts threaten your fleet's contracts. Partner with Volgen Power—your dedicated Volvo truck parts supplier for Sri Lanka—and secure the reliability your heavy haulers deserve.

FAQs.

Q1: What are the main Volvo D11 cylinder head symptoms?

A1: The most common signs are persistent white smoke from the exhaust, "milky" oil, unexplained coolant loss, and noticeable loss of engine power requiring a Volvo D11 compression test.

Q2: How much does a Volvo D11 cylinder head typically cost?

A2: The price varies significantly based on new, certified remanufactured, or used status, and market location. For professional, certified replacements, expect a higher investment than a local repair, but the long-term TCO is dramatically lower due to the warranty coverage.

Q3: Can I reuse my D11 head bolts?

A3: Absolutely not. Most modern Volvo engines use Torque-to-Yield (TTY) head bolts that stretch permanently upon initial tightening. Reusing them guarantees an improper seal and a rapid Volvo D11 blown head gasket failure.

Q4: What preventative maintenance helps extend cylinder head life?

A4: Strict adherence to oil change intervals, using high-quality coolants and anti-corrosion additives in the cylinder head cooling system, and periodic professional cooling system pressure tests are essential.

Conclusion: The Smart Commercial Decision

For the rigorous demands placed on heavy hauler engine maintenance in Sri Lanka, the decision is clear: uncertain repair is a false economy. The operational value and risk management gained by investing in a guaranteed, certified Volvo D11 cylinder head replacement far outweigh the short-term savings of a risky cylinder head crack repair. Choose a solution that guarantees your fleet’s maximum uptime and protects your bottom line.

Ready to secure your fleet’s reliability? Contact Volgen Power today for a transparent, authoritative quotation on certified Volvo D11 engine parts, delivered directly to your port in Sri Lanka. We offer solutions that provide true long-term economic value.
