What Is a Cylinder Head? Functions, Components, and Maintenance Tips

The engine cylinder head is one of the most critical structural and functional components in any internal combustion engine. Positioned at the top of the engine block, the cylinder head seals the combustion chambers, controls airflow, dissipates heat, and houses essential valvetrain components. Its performance directly affects engine efficiency, power output, emissions, and long-term reliability.

In heavy-duty diesel engines used in trucks, construction machinery, and industrial applications, the cylinder head operates under extreme thermal and mechanical stress. High combustion pressures, elevated exhaust temperatures, and continuous load cycles demand precise engineering, durable materials, and strict maintenance discipline.

This guide provides a comprehensive, technical explanation of what a cylinder head is, how it works, how it is manufactured, common failure modes, maintenance best practices, and how to select or upgrade a complete cylinder head for professional use.

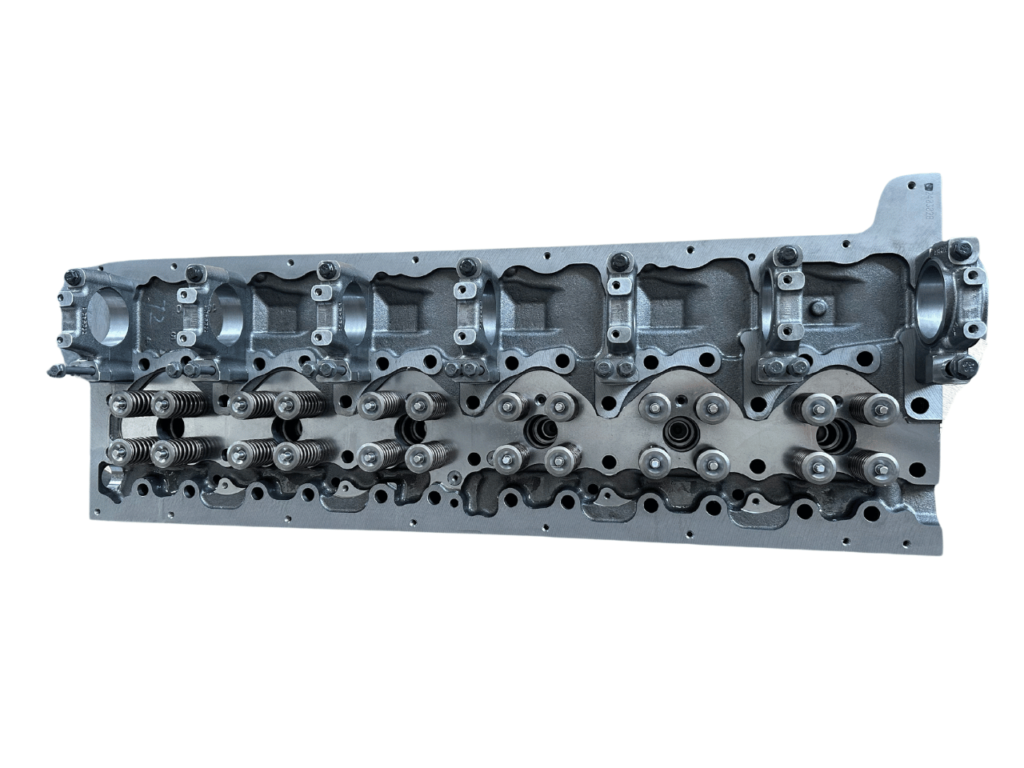

What Is an Engine Cylinder Head?

An engine cylinder head is a stationary metal component mounted on top of the engine block. It forms the upper boundary of the combustion chamber and works in conjunction with the pistons, valves, camshaft, and cylinder head gasket to enable the four-stroke combustion cycle.

The cylinder head is secured to the engine block using high-strength bolts or studs tightened in a specific sequence and torque pattern. This ensures precise alignment and an airtight seal capable of withstanding high combustion pressures and temperature fluctuations.

In modern engines, especially diesel engines, the cylinder head integrates multiple critical systems, including:

• Intake and exhaust ports
• Valve seats and valve guides
• Camshaft or camshaft bearings (depending on design)
• Fuel injectors or spark plugs
• Coolant passages
• Oil galleries

Because of this integration, the cylinder head is often considered one of the most complex castings in the entire engine.

What Does the Cylinder Head Do? Core Functions Explained

The cylinder head performs several essential functions that directly influence engine performance and durability.

Sealing the Combustion Chamber

The primary function of the cylinder head is to seal the combustion chamber. Together with the cylinder head gasket, it prevents combustion gases from escaping and stops coolant or oil from entering the cylinders.

A proper seal ensures maximum compression, stable combustion, and optimal power output.

Housing Valvetrain Components

The cylinder head houses key valvetrain components, including:

• Intake valves
• Exhaust valves
• Valve springs
• Valve guides
• Camshaft (in overhead cam designs)
• Rocker arms or followers

These components regulate the timing and duration of valve opening and closing, directly affecting engine breathing and efficiency.

Heat Dissipation and Cooling

Combustion generates intense heat that must be managed to prevent engine damage. The cylinder head contains internal coolant passages that circulate engine coolant around high-temperature areas such as valve seats and injector bores.

Efficient heat dissipation prevents warping, cracking, and premature component failure.

Managing Air and Exhaust Flow

The cylinder head incorporates precisely machined intake and exhaust ports that guide airflow into and out of the combustion chamber. Port geometry, surface finish, and valve angles all influence volumetric efficiency and emissions performance.

Types of Cylinder Head Designs

Cylinder head design varies depending on engine configuration, performance requirements, and manufacturing considerations.

Flathead Cylinder Head

Flathead designs place valves in the engine block rather than the cylinder head. This design is simple but inefficient and rarely used in modern engines.

Overhead Valve (OHV)

In OHV engines, valves are located in the cylinder head but actuated by pushrods and a camshaft located in the engine block. This design is robust and commonly found in older diesel engines.

Overhead Camshaft (OHC)

OHC designs place the camshaft directly in the cylinder head. This reduces valvetrain mass, improves valve timing accuracy, and supports higher engine speeds.

Dual Overhead Camshaft (DOHC)

DOHC cylinder heads use two camshafts—one for intake valves and one for exhaust valves. This design allows precise valve control and improved airflow, commonly used in high-performance and modern diesel engines.

How Cylinder Heads Are Manufactured

Cylinder head manufacturing is a complex, multi-stage process that requires precision engineering and strict quality control.

Material Selection and Casting

Cylinder heads are typically made from cast iron or aluminum alloy. Cast iron offers excellent strength and wear resistance, while aluminum provides lighter weight and superior heat dissipation.

Sand casting is commonly used to create the initial rough casting. Internal cores form coolant passages and oil galleries during this process.

Rough Machining

After casting, excess material is removed through turning, milling, and drilling operations. This establishes the basic geometry of the cylinder head.

Precision Machining

Critical features are machined to tight tolerances, including:

• Valve seat bores
• Valve guide holes
• Camshaft journals
• Injector or spark plug bores

Precision machining ensures correct alignment, sealing, and component fit.

Heat Treatment

Heat treatment processes such as quenching and tempering improve mechanical strength, fatigue resistance, and thermal stability.

Surface Treatment

Surface treatments may include sandblasting, coating, or electroplating to enhance corrosion resistance and surface durability.

Quality Inspection

Each cylinder head undergoes rigorous inspection, including:

• Dimensional measurement
• Surface roughness testing
• Pressure and leak testing
• Crack detection

Assembly and Testing

In the final stage, valves, guides, seals, and other components are installed. Completed heads may undergo air-tightness testing, pressure resistance testing, and thermal cycling simulations.

Common Cylinder Head Failures and Their Causes

Despite a robust design, cylinder heads can fail due to operating conditions or maintenance issues.

Overheating

Excessive engine temperature can cause cylinder head warping or cracking, especially around exhaust valve seats and injector bores.

Cracking

Thermal stress, poor casting quality, or sudden temperature changes can lead to cracks that compromise sealing and coolant containment.

Warping

Uneven heating or improper bolt torque can cause the cylinder head surface to deform, leading to gasket failure and compression loss.

Valve Seat Wear

High exhaust temperatures and poor lubrication can accelerate valve seat erosion, reducing sealing efficiency.

Gasket Failure

A failed cylinder head gasket can allow combustion gases, coolant, and oil to mix, leading to severe engine damage.

Cylinder Head Maintenance Tips for Long Engine Life

Proper maintenance significantly extends cylinder head service life and prevents costly failures.

Regular Inspection

Routine visual inspections help identify early signs of leaks, cracks, or abnormal wear.

Proper Bolt Torque

Cylinder head bolts must be tightened according to manufacturer specifications using the correct sequence and torque values.

Coolant System Maintenance

Maintaining proper coolant levels and using the correct coolant formulation prevents corrosion and overheating.

Regular Oil Changes

Clean oil ensures proper lubrication of valvetrain components and reduces wear.

Valve Clearance Adjustment

Correct valve clearance prevents excessive stress on valves and seats and ensures optimal engine performance.

Timely Gasket Replacement

Replacing worn gaskets prevents leakage and protects both the cylinder head and engine block.

Professional Inspection

Periodic professional inspection allows for advanced testing and early fault detection.

Cylinder Heads Guide: 4 Types, Maintenance, and Popular Models – VOLGEN POWER

When to Repair or Replace a Cylinder Head

Cylinder head repair may be possible in cases of minor warping, surface damage, or valve seat wear. Machining processes such as resurfacing and seat replacement can restore functionality.

However, replacement is recommended when:

• Cracks extend into critical areas
• Warping exceeds manufacturer limits
• Repeated gasket failures occur
• Structural integrity is compromised

Complete Cylinder Head vs Bare Cylinder Head

FAQs.

How can a cylinder head fail?

Cylinder heads can fail due to overheating, cracking, warping, or gasket failure, leading to compression loss and coolant leakage.

Can cylinder heads be repaired?

Many cylinder heads can be repaired through machining and component replacement, depending on damage severity.

How do I know if my cylinder head is damaged?

Common symptoms include overheating, white exhaust smoke, coolant loss, oil contamination, and reduced engine performance.

How often should cylinder heads be inspected?

Inspection should align with scheduled engine maintenance or whenever overheating or performance issues occur.

How much does it typically cost to repair a cylinder head?

Costs vary widely depending on engine type, damage level, and labor rates. Minor repairs are significantly less expensive than full replacement.

Professional Cylinder Head Supply for Heavy-Duty Trucks

Selecting the right cylinder head is critical for long-term engine reliability and performance, especially in demanding commercial and industrial environments.

Volgen Power specializes in supplying high-quality engine cylinder heads and complete cylinder head assemblies for heavy-duty diesel engines. Our product range supports major platforms, including Volvo, Scania, Cummins, MAN, and other commercial engine brands.

Each cylinder head is manufactured to precise specifications, undergoes strict quality inspection, and is designed to meet the durability requirements of professional fleet operators and distributors.

For businesses seeking reliable engine components, consistent supply, and technical support, working with an experienced supplier ensures reduced downtime and predictable maintenance outcomes.
