Volvo I-Shift Synchronizer Kit Guide 2026: Symptoms, Fitment, Stock & Dispatch

Table of Contents

• The Serial Number Authority Rule
• Diagnostic Logic: Decoding Symptoms
• The Hub-Ring Paradox
• Engineering Data: Model Series & Revision Maps
• The Volgen Power Standard: 58-62 HRC
• Verified Dispatch Protocol
• How to Order Your Verified Kit
• FAQ

Synchronizer Kit procurement for Volvo I-Shift transmissions requires precision. Fleet managers and lead mechanics know this well: synchronizer failure isn't theory. It's downtime. When an I-Shift transmission starts dragging, grinding, or throwing engagement faults, the clock's running on your operational budget. Every hour a truck sits in the bay costs money in lost revenue and driver idle time. Every mis-ordered part adds days to the repair timeline and creates frustration across your maintenance team.

This guide covers how to identify your transmission revision accurately, diagnose wear patterns before they become catastrophic failures, and secure the correct replacement assembly—without the costly return-refund cycles that plague generic parts and suppliers. Whether you're managing a fleet of 50 trucks or operating an independent repair shop, the principles here will save you time, money, and headaches on every single order. For a broader overview of Volvo transmission parts and maintenance schedules, see our comprehensive guide.

Volvo's I-Shift automated manual transmission has been in production since 2001. Over two decades, the platform has evolved through multiple hardware generations with significant internal changes between what appear to be identical models from the outside. Understanding these differences is essential when sourcing replacement parts for your I-Shift transmission. The I-Shift platform powers millions of commercial vehicles worldwide, making it one of the most common—and most misunderstood—transmissions in the industry today. If you're comparing I-Shift against alternatives like Eaton Endurant vs DT12, our comparison guide covers the key differences in design philosophy and repair considerations.

The Serial Number Authority Rule: Why Model Names Lie

Ordering a Synchronizer Kit by model name alone—AT2412D, for example—is one of the most common and expensive procurement errors in the heavy-duty trucking industry. It seems logical enough: you read the model number off the casing, you order the matching part. But this approach fails more often than it succeeds, and here's why.

Volvo I-Shift gearboxes are modular systems with over 30 factory revisions that have been released since production began. Internal cone profiles vary between production runs. Spline counts change based on torque requirements. Friction material specifications evolve as manufacturing technology improves. A gearbox built for Australian outback conditions has different thermal management characteristics than one built for Nordic climates. When you need replacement parts, the serial number is the only reliable identifier that guarantees correct fitment.

If a supplier ships components without performing serial verification first, you will encounter several predictable problems during installation:

• Binding during shifts — incorrect cone engagement angles cause gears to resist meshing properly, leading to driver complaints and potential damage to shift forks
• Premature thermal degradation — incompatible friction material breaks down under load much faster than specified, sometimes within weeks of installation.
• Rebuild delays — 48+ extra hours spent diagnosing why the new parts don't fit, plus additional shipping time for replacement.s

Volgen Power protocol: We cross-reference every order against our engineering database before any part leaves our facility. Your VIN is matched to the original factory build sheet. Your gearbox serial number is matched to specific production batches with known specifications. We don't guess—we verify with data.

Email [email protected] with your data plate photo for compatibility confirmation before placing your order.

Diagnostic Logic: Decoding Symptoms

Symptoms tell stories if you know how to read them. Most synchronizer failures follow predictable progression patterns, and catching problems early can mean the difference between a $400 ring replacement and a $3,000 full rebuild. Use this diagnostic table to determine the appropriate repair level for your specific situation:

Symptom	Primary Cause	Recommended Repair Level
Crunch/grind sensation (6th to 7th gear)	Partial ring wear, friction material thinning	Ring & Friction Set replacement
Engagement delay exceeding 500ms	Advanced friction surface degradation	Full Overhaul Bundle required
Metal particles on drain plug magnet	Dog-teeth damage, hub tooth rounding	Full Hub + Synchro Assembly
Pneumatic fault codes (PPC/PTO related)	Actuator wear combined with sync issues	Diagnostic + Complete Kit Package

Pro-tip for technicians: Use the Volvo Premium Tech Tool (PTT) to check the Sync_Engage_Time parameter in real-time. A healthy I-Shift shows engagement times between 300-500ms. Readings above 900ms indicate critical wear requiring immediate attention. Don't wait for complete failure before ordering replacement parts—proactive replacement during scheduled maintenance windows costs significantly less than emergency roadside repairs. Regular Volvo transmission maintenance helps catch these issues before they escalate.

The Hub-Ring Paradox: Why You Can't Just Replace the Ring

This is perhaps the most expensive mistake we see in the field: buying a partial set (ring only) while reusing the existing hub to save money upfront. The logic seems sound—why replace a component that still looks functional? But the engineering reality tells a different story.

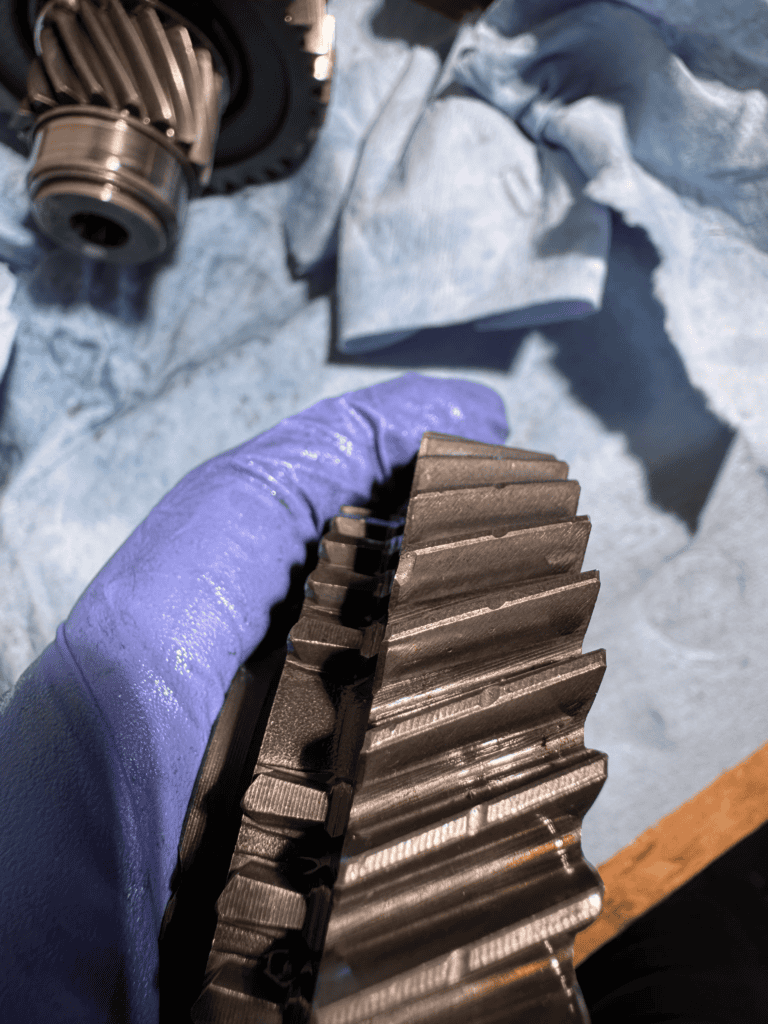

The hub and ring work as a precisely matched mechanical system. Their engagement surfaces wear together over hundreds of thousands of kilometers, developing complementary wear patterns. If hub dog-teeth have rounded even slightly—sometimes imperceptible to the naked eye—the brand-new ring will fail to engage properly. The result: your $400 partial repair lasts maybe three weeks before symptoms return, and now you're paying for a second teardown plus the complete assembly you should have ordered initially.

Our recommendation based on 15 years of field data: Always inspect hub teeth with calipers and magnification before deciding on the repair scope. If teeth show any rounding beyond 0.1mm deviation from spec, order the Full Hub + Assembly without hesitation. A quality complete unit delivers 800,000–1,200,000 km of service life. A ring-only fix on a compromised hub rarely exceeds 5,000 km before failure recurrence.

Engineering Data: Model Series & Revision Maps

Volgen Power maintains active tracking on 30+ I-Shift revisions currently in service worldwide. Selecting the correct components requires matching your specific revision to our database. Here are the most commonly encountered series in fleet operations:

• AT2412C (Serial range 000100–450000): Early generation using bronze-bonded friction material. Known issue: dog-tooth rounding becomes problematic around 600,000 km in high-torque applications.
• AT2612D (Serial range 450001–720000): Mid-generation update with high-temp composite friction surfaces. Known issue: hub spline play develops near 700,000 km in stop-start duty cycles.
• ATO2612F (Serial range 720001–990000): Current production standard featuring carbon-fiber enhanced friction technology. Known issue: seal degradation at 800,000 km in extreme temperature environments.
• VT2514B (Custom/Volvo Buses): Heavy-duty core variant with reinforced housing. Known issue: reverse-gear collar stress fractures in urban transit applications.

Critical warning: Never mix D-revision and F-revision components, even if they appear dimensionally identical. The cone angle difference of just 0.3 degrees causes immediate gear binding under load. Each assembly must match your exact revision code.

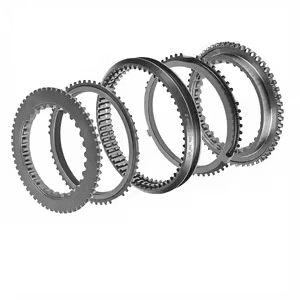

The Volgen Power Standard: 58-62 HRC Hardness

Material hardness is where cheap aftermarket components fail most consistently. Many budget suppliers cut corners by using softer steel that machines easily but wears out quickly under real-world loads. Understanding these specifications helps you make informed purchasing decisions and avoid repeat failures.

• 50-52 HRC (Generic aftermarket): Insufficient hardness causes premature wear. Soft metal deforms under the repeated impact loading of gear shifts, leading to rapid dimensional changes and eventual failure.
• 58-62 HRC (Volgen Power specification): Optimal range matching OEM engineering standards. This hardness provides excellent wear resistance while maintaining enough ductility to absorb shock loads without cracking.
• 65+ HRC (Over-hardened): Excessive hardness creates brittleness risk. Parts become prone to fracture under impact rather than wear gradually—a dangerous failure mode in transmission applications.

Every assembly shipped from Volgen Power includes a Batch QC Report documenting the actual measured hardness profile for each component. This documentation supports warranty claims and provides traceability throughout the component lifecycle.

Verified Dispatch Protocol: Eliminating Mid-Rebuild Surprises

We've all been there: it's 11 PM, the truck needs to be back on the road by 6 AM, and you discover the parts don't fit. Our verification protocol exists specifically to prevent this scenario through systematic pre-dispatch checking:

1. VIN/Serial Cross-Reference — The engineering team verifies your vehicle identification against our comprehensive database covering all 30+ I-Shift revisions
2. Friction-Index Matching — Selected components are matched to your specific duty-cycle heat load profile based on application type (long-haul, regional, construction, etc.)
3. Digital Spec-Sheet Delivery — Before dispatch, you receive photos, dimensional measurements, and QC reports via email for final confirmation

This process prevents the dreaded midnight discovery that your shipment has the wrong spline count or an incorrect cone profile. Standard timeline: verification completes within 2-4 working hours. Dispatch follows within 24 hours of confirmation. International shipments add 3-7 days, depending on destination customs processing.

How to Order Your Verified Synchronizer Kit

Getting started is straightforward. Send us the following information and receive a detailed quote with a compatibility report within 2 hours:

• Complete Vehicle Identification Number (VIN)
• Gearbox Serial Number from riveted data plate
• List of observed symptoms and fault codes, if available
• Photo of oil drain magnet showing any metallic debris present
• Preferred delivery address and contact details

Email your inquiry to: [email protected]

Browse our full catalog: Volgen Power Product Catalog

Frequently Asked Questions

How do I locate my gearbox serial number?

The serial number plate is riveted to the passenger side of the transmission casing, typically visible from below the vehicle. Take a clear photo including all printed text and send it with your inquiry—we'll handle the rest.

Can I save money by replacing just the friction ring?

Only if your hub dog-teeth are in perfect condition with no measurable rounding. In practice, most transmissions showing ring wear also have hub degradation. We recommend the complete assembly unless inspection confirms pristine hub condition.

Why can't I simply use model numbers like AT2612D to identify what I need?

Multiple internal revisions exist under each model designation. Two AT2612D units built six months apart may have completely different internal specifications. Serial number remains the only authoritative identifier.

What warranty coverage do you provide?

All serial-verified assemblies carry a 2-year unlimited mileage warranty covering manufacturing defects and premature wear under normal operating conditions.

What service life should I expect from a quality kit?

Properly installed and maintained assemblies deliver 800,000–1,200,000 km under standard long-haul conditions. Heavy-duty applications (construction, logging) may see shorter intervals depending on duty cycle severity.

Do you include installation documentation?

Yes. Every shipment includes detailed installation schematics, recommended torque specifications, and break-in procedures specific to your transmission revision.

What if my transmission has been modified or rebuilt previously?

We specialize in non-standard configurations. Provide whatever identification information is available and our engineering team will work with you to determine correct fitment.

Why is 58-62 HRC the target hardness range specifically?

This range represents the optimal balance point: hard enough to resist wear under repeated shifting loads, yet sufficiently tough to absorb impact energy without fracturing. It matches OEM specifications developed through extensive testing.

Do you ship internationally?

Yes, we serve customers in over 40 countries worldwide. International orders include complete QC reports, customs documentation, and tracked shipping with insurance coverage.

How can I accelerate the quoting process?

Include a clear photo of your data plate in your very first email.
