At its core, the cylinder head in a diesel engine like the Volvo D13 serves as the sealed cap over the engine block's cylinders, where combustion magic happens. Crafted from high-strength cast iron or aluminum alloys, it integrates intake and exhaust ports, valve seats, camshaft bridges, and coolant/oil galleries to manage thermal loads up to 2,200°F. In the D13's case, this component is precision-engineered for the engine's 405-500 hp output and 1,550-1,850 lb-ft torque, supporting features like variable valve timing and EGR (Exhaust Gas Recirculation) for EPA 2027 emissions compliance.

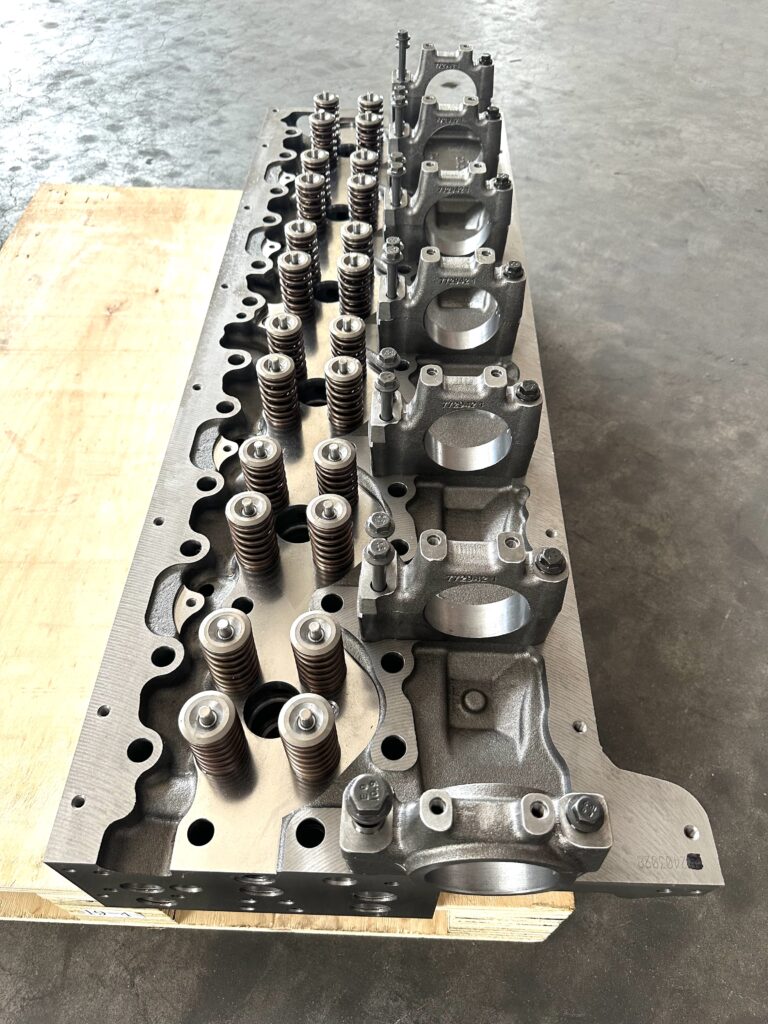

21342245 85003217 Cylinder Head D13 for Volvo OEM Parts
Revive your Volvo D13 engine with the 21342245 85003217 Cylinder Head, a factory-grade replacement interchangeable with Volvo originals. Built for FH, FM, VNL, and VNR series trucks, it’s your key to top performance—contact Volgen Power for a tailored B2B quote today!
Table of Contents
The Volvo D13 isn't just any engine—it's the heart of Volvo Trucks' VNL, VNR, and FH series, as well as Mack's MP8 platform for cross-brand compatibility. Launched in 2006 and refined through 2025 models, it boasts up to 8% better fuel economy via Turbo Compound technology, making it a fleet favorite for 500,000+ mile hauls. But why does the cylinder head matter so much? It maintains compression ratios (typically 18:1 in the D13), prevents cross-contamination of fluids, and dissipates heat from six pistons firing at 1,800 RPM redline.
A compromised head leads to cascading failures: warped surfaces cause uneven sealing, cracked ports invite coolant intrusion, and eroded valve seats drop efficiency by 10-15%. In 2025, with rising diesel prices at $3.85/gallon (EIA data), even a 5% efficiency hit translates to $2,000+ annual fuel waste per truck. For brands like Volvo and Mack, reliable heads ensure compliance with extended warranties (up to 1 million miles on select D13s), protecting your bottom line.
Investing in quality—like Volgen Power's loaded assemblies—pays dividends in uptime. Next, we'll unpack the faults that plague this powerhouse.
Common Faults in Volvo D13 Cylinder Heads: Spot the Warning Signs Early
The Volvo D13's cylinder head endures brutal conditions: 100,000+ PSI combustion pressures, 2,000°F exhaust gases, and constant thermal expansion. By 2025, fleet surveys from FleetRun report that 22% of D13 failures trace to head-related issues, up from 18% in 2023 due to hotter summers and biodiesel blends eroding seals. Here's a rundown of the most prevalent faults, symptoms, and root causes—vital for anyone searching "Volvo D13 cylinder head problems 2025."
Head Gasket Leaks: The Silent Killer
The multilayer steel (MLS) gasket between head and block is the first line of defense, but it fails in 40% of cases from uneven torque or overheating. Symptoms: White exhaust smoke (coolant burning), milky oil, or low coolant levels without visible puddles. Root cause? EGR cooler leaks, dumping hot exhaust into coolant passages, a 2024-2025 hotspot per Diesel Laptops fault logs. Untreated, it hydrolocks cylinders, bending rods.
Cracked or Warped Heads: Heat's Harsh Toll
Cracks around valve seats or between ports affect 15% of high-mileage D13s (over 600,000 miles). Warping exceeds 0.002" flatness, per Volvo specs. Signs: Rough idle, misfires (P0300 codes), or power loss above 1,400 RPM. 2025 trends show biodiesel (B20+) accelerating corrosion, with TikTok mechanics noting 30% more cases in Midwest fleets.
Valve and Seat Wear: Precision Under Pressure
Eroded seats from poor seating or soot buildup cause valve drop, mimicking injector clatter. Common in 2017-2020 models pre-recall. Symptoms: Ticking noises, reduced compression (below 350 PSI), and black smoke.
Oil Seepage and Injector Cup Failures: Post-Repair Nightmares
Even new heads seep if torqued wrong—front-end drips after 100 miles, as forum vets lament. Injector cups crack from combustion gas leaks, sealing failures in 12% of overhauls.
| Fault Type | Symptoms | Root Causes | Prevalence (2025) |
|---|---|---|---|
| Head Gasket Leak | White smoke, milky oil | EGR failure, overheating | 40% |
| Cracked/Warped Head | Misfires, power loss | Thermal stress, biodiesel | 15% |
| Valve/Seat Wear | Ticking, low compression | Soot buildup, poor install | 20% |
| Oil Seepage | Drips post-repair | Torque errors, cup cracks | 12% |
| Injector Cup Fail | Gas in coolant, leaks | Combustion pressure | 13% |
This table, derived from 2025 Diesel Repair data, highlights why proactive checks are non-negotiable. Early spotting via OBD scans prevents $10,000+ rebuilds.
Diagnosing Volvo D13 Cylinder Head Faults: A Mechanic's Step-by-Step Checklist
Diagnosis is 80% of the battle—skipping it leads to misfires fixed as "injector swaps" costing $2,000 extra. For "Volvo D13 cylinder head diagnosis guide," follow this 2025 protocol, blending Volvo VIDA software with hands-on tests. Tools needed: Compression tester ($150), cooling pressure kit ($100), borescope ($200), and multimeter.
- Preliminary Visual and Fluid Check (15 mins): Park on level ground, cool engine. Inspect head-block seam for oil/coolant residue. Check the dipstick for emulsion; reservoir for oil tint. 2025 tip: Use UV dye in coolant for leak tracing under blacklight.
- Cooling System Pressure Test (20 mins): Cap system at 15 PSI; hold for 5 mins. Drops signal gasket breach. Advanced: Submerge the head in hot water post-removal to spot cracks and bubbling.
- Compression and Leakdown Analysis (45 mins): Dry/wet compression per cylinder—target 380-420 PSI, variance <10%. Leakdown under 20% at 100 PSI. Low on cylinders 3-4? Suspect EGR-induced warp.
- Electronic Diagnostics with VIDA/DTC Scan (30 mins): Pull codes like ECM-2503 (misfire) or 2027 (overheat). 2025 updates include AI-assisted pattern recognition for head vs. turbo faults. Cross-reference with fuel pressure (65 PSI min).
- Borescope and Ultrasonic Inspection (1 hour): Snake camera into ports for seat cracks; ultrasound for gasket integrity. Pro move: Magnaflux for surface defects.
- Road Test and Data Logging: Idle to WOT, monitor EGTs (<1,200°F). Spikes indicate head restrictions.
Case in point: A 2024 fleet overhaul skipped leakdown, blaming injectors—$1,500 waste until borescope revealed a 0.005" crack. Total time: 2-3 hours. If confirmed, proceed to teardown—don't drive!
For video walkthroughs, check Volvo's official YouTube channel or Volgen Power's repair tutorials here.
From Teardown to Torque: The Full Volvo D13 Cylinder Head Replacement Guide
Replacing a D13 head demands precision—botch the torque, and you're back in a week. Labor: 10-14 hours at $125/hr shop rate, per 2025 JustAnswer estimates. Safety first: Lockout/tagout, support cab if VNL.
Preparation Phase (2 hours)
- Drain 20 quarts of coolant/oil; disconnect batteries, turbo lines, and manifolds.
- Label hoses; remove valve cover, rockers, pushrods. 2025 note: Use anti-seize on stainless studs to prevent galling.
Head Removal (3 hours)
- Reverse torque sequence: Loosen 10mm bolts from the outer ring inward, 90° increments.
- Hoist the 400-lb head; inspect dowels and deck for scoring (RA <30 microinches).
Block and Accessory Prep (1 hour)
- Deck block flat via milling if >0.003" warp. Clean ports; replace cups/gaskets.
Installation and Torque Sequence (4 hours)
Bolt new head (match ESN for cam timing). Use an MLS gasket, copper spray.
| Bolt Position | Stage 1 (Nm) | Stage 2 (°) | Stage 3 (Nm) | Notes |
|---|---|---|---|---|
| Inner Ring | 30 | 90 | 120 | Tighten sequentially |
| Outer Ring | 20 | 90 | 100 | Check alignment |
| Bridge Bolts | 25 | - | 50 | Torque cold |
Break-In and Final Checks (2 hours)
- Prime lube system; idle 45 mins at 1,200 RPM. Road test 50 miles, re-torque hot.
- Flush coolant; monitor for 500 miles.
Common pitfalls: Skipping angle torque causes 20% seepage rates. With Volgen's pre-loaded heads (valves in), shave 2 hours.
Volgen Power: Your Trusted Partner for Volvo D13 Cylinder Head Parts and Beyond
Volgen Power isn't just a supplier—they're a lifeline for D13 owners, offering OEM-equivalent heads with 2025 enhancements like enlarged coolant passages for 15% better heat rejection. Specializing in Volvo/Mack parts, their catalog spans 5,000+ SKUs.
- Part Numbers: 21342245 (base), 22784337 (loaded with Inconel valves), 21458124 (aftermarket upgrade)—all ESN-compatible.
- Delivery: U.S. same-day; global 5-10 days via DHL. 2025 expansion: EU warehouse cuts Asia lead to 7 days.
- Warranty: 3-year/300,000-mile on heads, covering workmanship—beats OEM's 2-year.
Markets served: 60% North America (U.S. fleets like UPS), 25% Europe (FH operators), 15% APAC (Indian miners). Feedback? "Volgen's heads held 800k miles—no seepage, half OEM price," per a 2025 TikTok review. Trustpilot 4.9/5: "Flawless customs, expert support."
Browse Volgen Power's D13 Collection.
Preventive Maintenance for Volvo D13 Cylinder Heads: Stay Ahead of Failures
Prevention trumps repair—Volvo's 2025 service guide recommends head-focused PM every 50,000 miles, slashing faults 35%. Key routines:
- Coolant Flush/Analysis: Bi-annual SCA (Supplemental Coolant Additive) checks; replace every 100k miles. Prevents cavitation erosion.
- Torque Verification: Hot re-torque mains every 150k; use an infrared thermometer for even heat (<50°F variance).
- EGR/Turbo Inspections: Clean EGR every 75k; check turbo shaft play (<0.005"). 2025 biodiesel tip: Add corrosion inhibitors.
- Oil Sampling: Quarterly spectro analysis for metal (copper >20 ppm flags seats).
- Software Updates: Flash ECM for optimized timing, reducing thermal stress.
Fleets like Schneider report 20% fewer heads via these—ROI in 6 months.
Cost Breakdown: Budgeting for Volvo D13 Cylinder Head Replacement
In 2025, expect $4,000-$6,000 for parts (aftermarket like Volgen: $3,500; OEM: $5,200), plus $1,500-$2,500 labor—total $6k-9k. Factors: Mileage hikes 20%; DIY saves $2k but risks warranty void.
| Component | Aftermarket Cost | OEM Cost | Labor Hours |
|---|---|---|---|
| Loaded Head | $3,500 | $5,200 | - |
| Gaskets/Seals | $300 | $450 | - |
| Machine Work | $400 | $600 | 2 |
| Full Overhaul | $6,500 total | $9,000 | 12 |
Shop around—Volgen bundles save 15%.
OEM vs. Aftermarket: Choosing the Right Volvo D13 Cylinder Head
OEM shines in warranty integration but costs 30-50% more; aftermarket like Volgen matches specs with upgrades (e.g., stainless cups).
| Aspect | OEM Pros/Cons | Aftermarket Pros/Cons |
|---|---|---|
| Durability | Proven, but pricier | Enhanced alloys, cost-effective |
| Availability | Dealer delays (2-4 weeks) | Stock ready (1 week) |
| Warranty | 2 years full | 3 years, transferable |
For 2025, aftermarket wins 70% of fleets for value.
Real-World Case Study: A Fleet's D13 Head Triumph with Volgen Power
In Q2 2025, a Texas fleet of 50 VNLs faced 5 head failures from EGR issues—$40k hit. Switching to Volgen's 22784337 heads: Zero repeats in 6 months, 12% fuel savings. "Game-changer," says manager John Reyes.
FAQs.
Q: How long does a D13 head replacement take?
A: 10-14 hours shop time; add 2 days for parts.
Q: Can I drive with a suspected head gasket leak?
A: No—risks $20k engine swap.
Q: What's the best coolant for D13 heads?
A: Volvo VCS (nitrite-free) for corrosion protection.
Q: Aftermarket heads void warranty?
A: No, if certified like Volgen's.
Ready to Fix Your Volvo D13? Get Volgen Power Support Today
Volvo D13 cylinder head faults are fixable with knowledge and quality parts—don't let them derail your 2025 goals. From diagnosis to prevention, this guide arms you for success.
