Quick Answer
A synchronizer ring matches gear speeds before engagement in manual and automated manual transmissions. In heavy-duty applications, correct replacement depends on the OEM part number, gearbox model, and component configuration — not on material or symptoms alone.
How a Transmission Synchronizer Ring Works
Primary Functions:
- Speed Synchronization: The ring and cone friction surfaces help reduce the speed difference between the gear and synchronizer hub during engagement.
- Blocking Premature Engagement: The blocker ring prevents the sleeve from engaging the gear teeth until sufficient synchronization has occurred.
- Supporting Smooth Gear Engagement: Once rotational speeds are sufficiently matched, the sliding sleeve can engage the gear’s clutch or dog teeth with reduced clash.
Step-by-Step Process:
- When shifting, the sleeve moves toward the gear.
- The blocker ring is pressed against the cone on the gear.
- Friction between the cone and ring equalizes the rotational speeds.
- Once speeds are matched, the sleeve can fully engage the gear’s dog teeth.

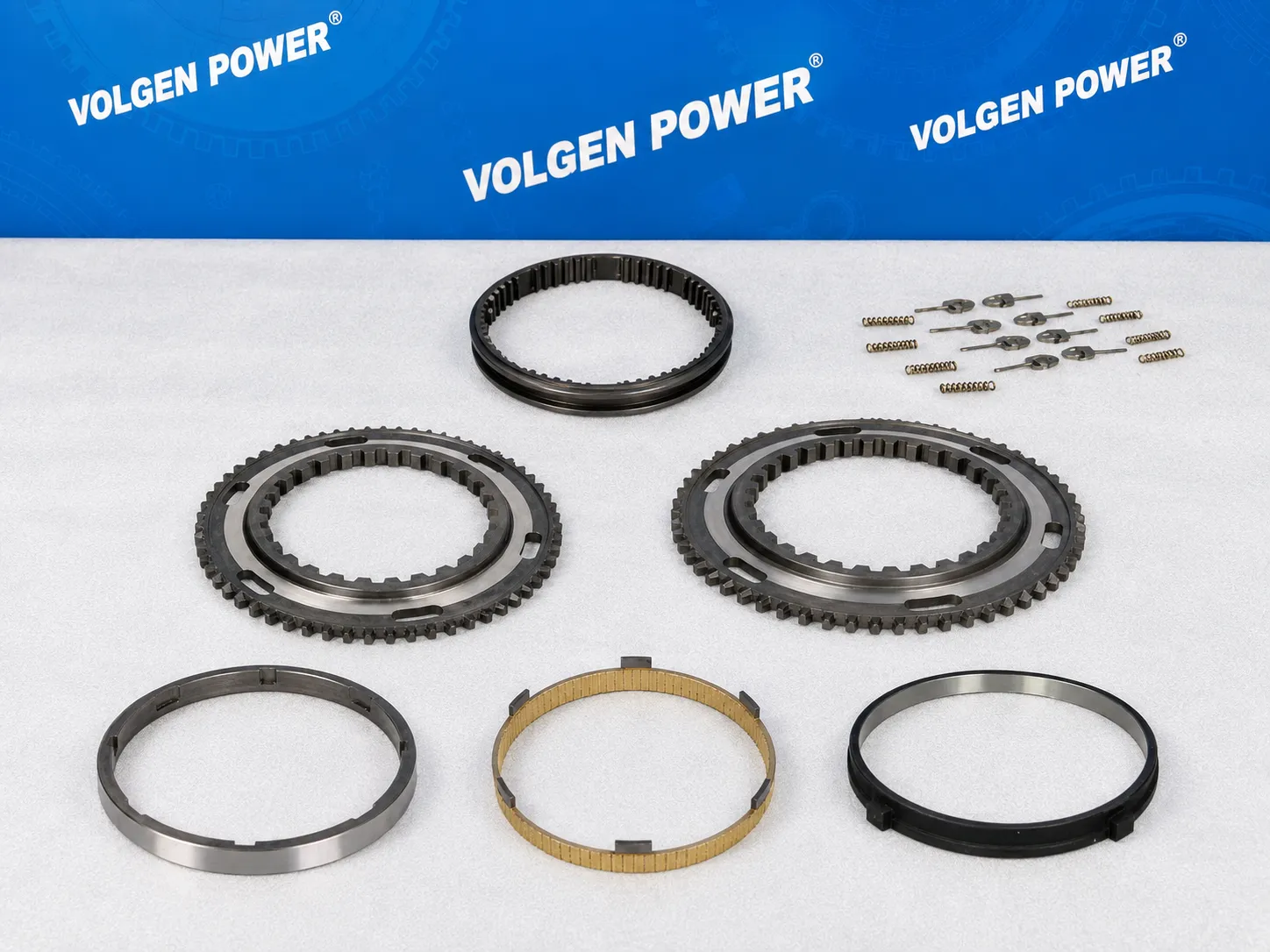

Main Components of a Synchronizer Assembly
- Synchronizer Hub — Splined to the shaft, rotates with it, carries the sleeve and keys.
- Synchronizer Sleeve — Slides over the hub to engage the gear’s dog or clutch teeth.
- Keys and Springs — Position the sleeve and control its axial movement.
- Synchronizer (Blocker) Ring — Primary friction component. Generates friction torque against the cone.
- Synchronizer Cone — Friction surface attached to the gear, works with the ring to match speeds.
Synchronizer Ring Designs and Friction Materials
Synchronizer rings vary by body material, friction lining, and cone construction. Common configurations include:
- Brass / bronze ring bodies — Traditional material for light and medium-duty transmissions.
- Steel / powder-metal ring bodies — Used in higher-torque applications.
- Carbon friction lining — Applied to the ring friction surface, not the entire ring body.
- Molybdenum / sintered friction surfaces — Used in certain heavy-duty applications.
- Single / double / multi-cone designs — Number of friction surfaces affects torque capacity.
Important: Material alone is not a compatibility criterion. Replacement rings should be matched by OEM reference, gearbox model, synchronizer design, and component dimensions where required.
How to Identify the Correct Replacement Synchronizer Ring
Buyer Decision Checklist:
| Check | Why It Matters |
|---|---|
| OEM / Part Number | Primary identification reference |
| Transmission Model | Designs vary between gearbox series |
| Gear / Position | Different gears may use different rings |
| Ring / Cone / Sleeve Set | May need to be matched as a system |
| Old-Part Photos | Helps identify tooth count and configuration |
| Dimensions | Used when OEM references are uncertain |
Individual Ring or Synchronizer Kit?
Whether to source individual components or a kit depends on the scope of the overhaul:
- Ring only — Suitable when ring wear is isolated.
- Ring + cone — Common replacement pair.
- Hub and sleeve — Replace when sleeve damage is observed.
- Full synchronizer assembly — For major transmission overhauls.
- Overhaul gasket set — Often required alongside synchronizer components.
Heavy-Duty Transmission Platforms
- Volvo I-Shift — Components vary across transmission series. Verify gearbox model and OEM reference.
- Eaton Transmissions — Match to exact transmission model and component configuration.
- ZF & Other Gearboxes — Constructions differ. Model names alone are insufficient evidence.
Browse our Volvo transmission parts and Eaton gearbox parts categories.
When Synchronizer Components Should Be Inspected During an Overhaul
- Difficult gear engagement
- Gear clash or grinding noise
- Visible wear on ring, cone, or sleeve friction surfaces
- Abnormal clearance beyond specification
- Damaged dog teeth or blocking teeth
Important: Do not identify the replacement ring from symptoms alone. Verify the gearbox model, OEM number, and removed component condition before ordering.
What Affects Synchronizer Ring Pricing?
- OEM part number and brand
- Transmission model and application
- Individual ring vs synchronizer kit
- Construction type and friction lining
- Order quantity and packaging
- Current market availability
For current pricing, send the OEM number, gearbox model, quantity, and destination country.
How Volgen Power Supports Synchronizer Parts Sourcing
Volgen Power supplies synchronizer rings and related transmission components for heavy-duty trucks and commercial vehicles. Our sourcing support covers:
- OEM number and gearbox model matching
- Multi-brand sourcing across Volvo, Eaton, ZF
- Component inspection support via photos and spec review
- Export packing for international shipment
We are a supply chain specialist, not a manufacturer. Compatibility verification is based on OEM references, gearbox data, and component specifications.
Request a Quote for Synchronizer Rings
Provide your transmission model and OEM part number for compatibility verification and pricing.
What to Send for Quotation
- Transmission Model — e.g., Volvo I-Shift, Eaton series
- OEM Part Number — From gearbox nameplate or old component
- Quantity — Number of units required
- Destination Country — For shipping calculation
- Old-Part Photos — Where available
MOQ, lead time, and warranty terms are confirmed at quotation.
Conclusion
Synchronizer rings play a key role in transmission performance and reliability. For workshops, rebuilders, distributors, and fleet maintenance teams, sourcing the correct replacement requires verifying the transmission model, OEM part number, and component configuration.
For sourcing assistance, submit your transmission model and OEM part number, or browse our Volvo transmission parts and Eaton gearbox parts categories.
Need Synchronizer Rings for Your Transmission?
Send us your OEM number, gearbox model, and quantity for a direct quotation.
FAQs
How do I identify the correct synchronizer ring?
Use the OEM part number from the gearbox nameplate or old component. Verify against the transmission model and gear position.
Is the OEM number enough?
The OEM number is the primary reference. In some cases, transmission model and photos may also be required.
Can rings from different gearbox models be interchangeable?
Not without verification. Designs vary between gearbox series.
Should I replace ring, cone, and sleeve together?
Replacing them together ensures consistent wear characteristics.
Can you match a ring from old-part photos?
Yes. Photos help confirm tooth count and configuration.
What information is needed for wholesale quotation?
OEM number, transmission model, quantity, destination country, and photos if available.
What are the MOQ and lead time?
MOQ, lead time, and warranty terms are confirmed at quotation.
