If your check engine light triggers a P0340 code on a high-horsepower diesel engine, it signals a camshaft position sensor Bank 1 malfunction—a fault that disrupts precise engine timing, particularly critical in heavy-duty applications. In big rigs with 400-600+ HP outputs, this issue is not just a nuisance; it can cause severe torque loss, misfires, or even engine shutdowns, often costing fleets over $1,000 in recovery fees and lost haul time.
At VOLGEN POWER, we specialize in high-durability diesel engine spare parts, including premium, OEM-grade sensors for models like the Cummins ISX, Detroit DD15, and Volvo D13.
This updated 2025 guide provides a master technician’s step-by-step P0340 diagnosis and repair protocol tailored for heavy-duty trucks. We focus on advanced testing (oscilloscope analysis) to help you avoid the costly mistake of replacing the sensor when the fault lies in the wiring or timing chain.
Shop VOLGEN POWER’s High-Duty Camshaft Position Sensors Now and cut repair time by 50% with our global stock and immediate shipping.
Table of Contents
Caption: Cummins ISX CM870 engine diagram highlighting camshaft position sensor locations for heavy-duty diagnostics. Source: Cummins QuickServe.
Camshaft Position Sensor Bank 1: Where Is It Located in High HP Diesels?
The camshaft position sensor tracks camshaft rotation to optimize fuel injection and ignition timing—vital for high-horsepower diesel engines where precise synchronization prevents power dips under load. In Bank 1 (cylinder #1 side, often driver’s side in inline-6 configs), it’s typically near the front timing cover or cylinder head. Locations vary by engine, but heavy-duty designs prioritize accessibility for roadside fixes.
General Guidelines for Heavy-Duty Engines
- Step 1: Reference the service manual for cylinder #1 (front bank in inline diesels like ISX).
- Step 2: Spot the 3-4 inch sensor with pigtail harness on the camshaft housing, often under the valve cover.
- Accessibility Tip: In big rigs, use a creeper; remove air intake or coolant lines if blocked.
Engine-Specific Examples
| Engine Model | Bank 1 Location | Access Difficulty | Volgen Replacement Part (Price Est.) | Link |
|---|---|---|---|---|
| Cummins ISX (Peterbilt 389) | Front timing gear cover, near crankshaft pulley | Medium (remove belts) | HD CMP Sensor Kit ($85) | Buy Now |
| Detroit DD15 (Freightliner Cascadia) | Cylinder head, top front | High (valve cover removal) | OEM-Grade DD15 Sensor ($95) | Buy Now |
| Volvo D13 (Volvo VNL 760) | Rear camshaft bearing cap | Medium (exhaust manifold access) | Heavy-Duty Volvo CMP ($90) | Buy Now |
| Mack MP8 (Kenworth T680) | Intake manifold side | Low | Universal Big Bore Kit ($80) | Buy Now |
| Paccar MX-13 (International HX) | Front gear train housing | Medium | Paccar-Compatible ($88) | Buy Now |

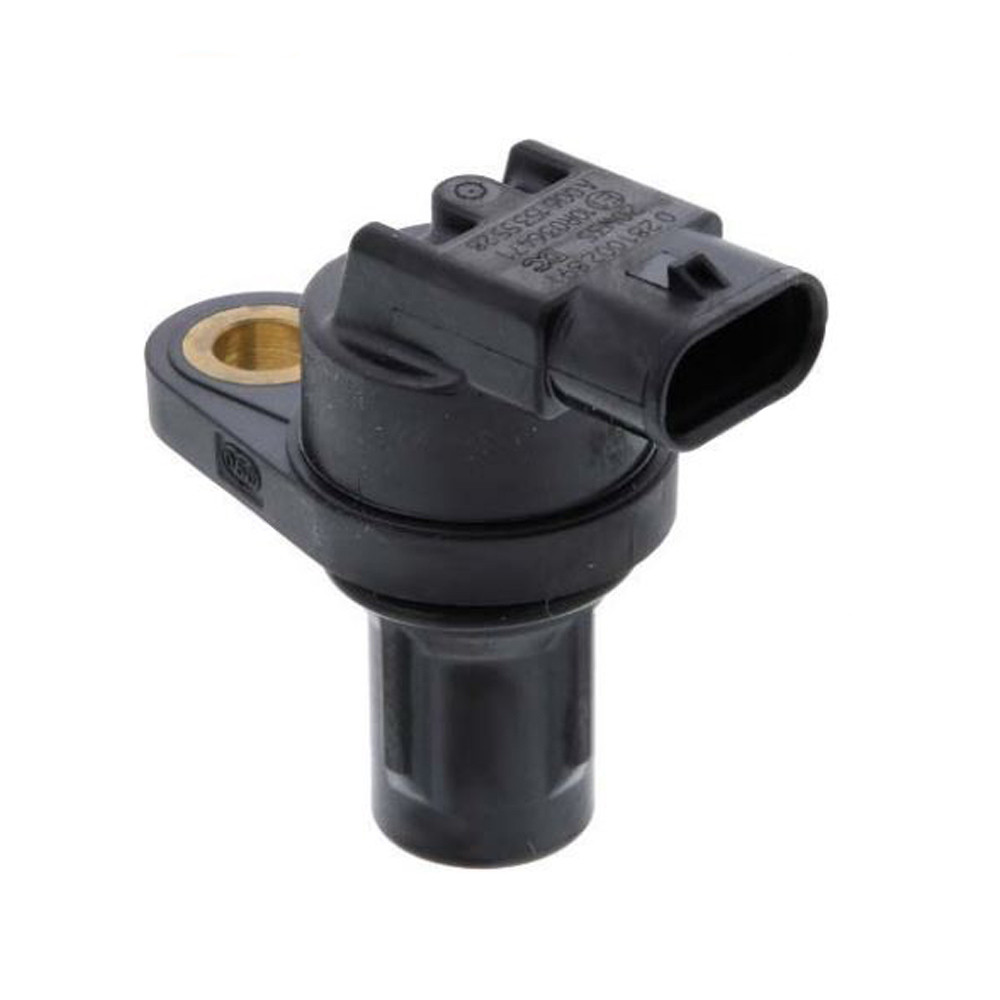

Detroit DD15 camshaft position sensor OEM part (A0061535528) for heavy-duty replacement.
What Does P0340 Code Mean? Symptoms & Causes in Heavy-Duty Engines
P0340 = “Camshaft Position Sensor ‘A’ Circuit (Bank 1) Malfunction.” In high-horsepower diesels, the ECM loses camshaft signal, causing derate modes or limp-home, critical for 500+ HP outputs where timing errors spike emissions and fuel burn.
Key Symptoms in Big Rigs
- Power Loss & Derate: Torque drops 20-30% on grades; links to bad camshaft sensor symptoms in heavy loads.
- Extended Cranking: 10-20 seconds in cold starts; common in OTR trucks.
- High Fuel Consumption: 15%+ increase—tie into high-horsepower diesel engine parts guide.
- Check Engine Light & Shutdowns: FMCSA compliance risk.
- Black Smoke/Emissions Fail: DPF regen issues from incomplete burns.
Possible Causes
- Faulty Sensor (70% in HD): Heat/vibration wear in 600 HP+ apps.
- Wiring/Connector Damage: Chafing from road vibes or salt exposure.
- Timing Chain/Gear Wear: Stretch in high-torque engines.
- ECM Glitch: Rare; reset first.
- Contaminants: Oil leaks or soot buildup.
Fleet Story: “P0340 derated our Cascadia’s DD15 mid-haul. Volgen’s sensor swap got us back in 2 hours—saved a $2K tow!” – Tom L., Fleet Manager. View more HD reviews.
Watch this tutorial for visual diagnosis: How to Test & Fix P0340 in Heavy-Duty Trucks (YouTube) – Covers inline-6 timing checks relevant to D13/ISX.
How to Diagnose & Repair P0340 Code
DIY time: 2-4 hours in a shop bay, cost $80-250. For fleets, prioritize minimal downtime.
Step-by-Step Diagnosis
- Scan Codes: Use a heavy-duty OBD tool for P0340 confirmation. Shop Volgen HD scanners.
- Visual Inspection: Check the harness for abrasion (common in bumpers).
- Continuity Test: Multimeter on pins (0-5 ohms expected).
- Signal Voltage: 5-12V reference; scope for waveform dropouts.
- Timing Verification: Dial indicator on chain slack.
- Replace & Relearn: Swap sensor, perform ECM reflash if needed.
Repair Tips for High HP Diesels
- Torque to 15-20 Nm; use anti-seize.
- Clear codes and road-test under load.
- For ISX specifics, see crankshaft sensor testing in big-bore engines.
Tools Needed for P0340 Fix in Heavy-Duty
| Tool | Purpose | Volgen Recommendation | Price Est. |
|---|---|---|---|
| HD OBD-II Scanner | Read/clear derate codes | JPRO ProLink | $150 |
| Digital Multimeter | Voltage/resistance in harsh env. | Fluke HD Auto Kit | $50 |
| Socket Set (Metric) | Sensor bolt removal | 1/2″ Drive Big Rig Set | $40 |
| Oscilloscope | Timing waveform analysis | PicoScope Diesel | $200 |
| Sensor Kit | Includes gaskets/seals | HD CMP Full Kit | $100 |
Bundle the Volgen Heavy-Duty Repair Kit—free shipping on $200+ fleet orders.
Post-Repair Test Drive & Prevention
Post-fix protocol for OTR safety:
- Load Test: Idle 10 min, pull 10% grade, monitor for codes.
- Long-Haul Monitor: Scanner-log 500 miles.
- Prevention: Quarterly harness wraps; dielectric grease on pins. In 2025, EPA specs, integrate with ADAS for predictive alerts.
Pro Tip: For Volvo D13 visuals, check P0340 Diagnosis Video on Heavy Trucks (YouTube) – Shows cranking fixes in similar inline engines.
Side view of Detroit DD15 camshaft sensor for precise heavy-duty installation.
FAQs.
Q: Safe to haul with P0340 active?
A: No—derate risks, accidents; tow if over 20% power loss.
Q: P0340 vs. P0335 in big diesels?
A: P0340 is the camshaft; P0335 crankshaft. See P0304 misfire guide (ES).
Q: Fleet-specific fixes for ISX/DD15?
A: Focus on vibration-proof wiring; stock high-horsepower diesel parts.
Q: Total fix cost?
A: DIY $80-250; shop $500-1,200 (incl. labor).
