10 Critical Symptoms of a Bad Camshaft Position Sensor and How to Fix

The Camshaft Position Sensor (CMP) is a seemingly small component. Still, its functionality is paramount to the operational integrity of any modern internal combustion engine, especially in Heavy-Duty Diesel Engines (HDDEs) equipped with complex Variable Valve Timing (VVT), advanced Exhaust Gas Recirculation (EGR), and sophisticated Diesel Particulate Filter (DPF) systems. The Diagnostic Trouble Code (DTC) P0340 (“Camshaft Position Sensor ‘A’ Circuit Malfunction”) is one of the most frequently encountered codes that can bring high-value commercial vehicles—like long-haul trucks, construction machinery, and fleet generators—to a sudden, costly halt.

For professional technicians and fleet managers, simply replacing the sensor is often an insufficient and sometimes dangerous diagnostic shortcut. A P0340 code often serves as a critical pre-warning indicator of more severe mechanical issues, such as compromised timing components (timing chain stretch, gear wear) or significant wear within the cylinder head or crankshaft assembly.

Volgen Power, with over 26 years of specialization in high-quality, high-precision HDDE core components—including Cummins, MAN, and Volvo Cylinder Heads and Crankshafts—offers this comprehensive guide. Our goal is to elevate your diagnostic capability beyond a simple code read, guiding you to a reliable solution that protects your investment from escalating into a catastrophic and expensive engine overhaul.

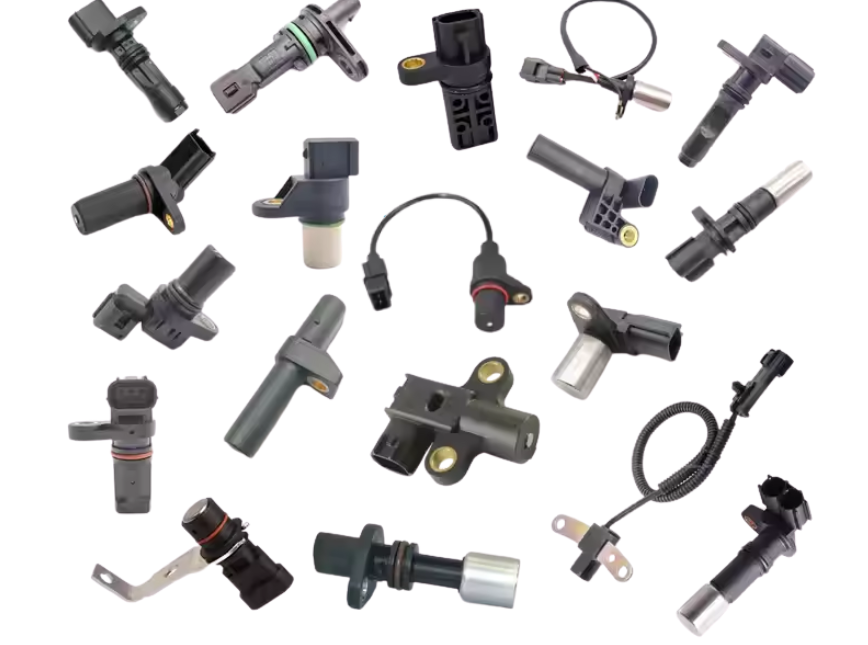

The Camshaft Position Sensor: The ECU’s Crucial Eye

The CMP sensor is responsible for telling the Engine Control Unit (ECU)/Powertrain Control Module (PCM) the exact position of the camshaft at any given moment. This data is essential for synchronizing two of the engine’s most critical functions:

1. Fuel Injection Timing: Ensuring fuel is injected precisely when the piston is in the correct position for combustion (especially vital in diesel engines).
2. Valve Timing: Coordinating the opening and closing of intake and exhaust valves, a function increasingly complex in HDDEs utilizing VVT to meet stringent modern emission standards.

The P0340 DTC means the ECU has either lost the sensor’s signal entirely or the signal is inconsistent, leading to a loss of synchronization between the camshaft and the crankshaft (tracked by the Crankshaft Position Sensor, CKP).

The 10 Critical Symptoms of a CMP Circuit Failure

While a generic P0340 may be the only initial symptom, a failing CMP circuit rapidly causes noticeable, performance-degrading issues in HDDEs:

1. Check Engine Light Illumination (P0340)
   • Pro Insight: Always check for companion codes. P0340 often appears alongside P0335 (CKP Circuit) or P0016 (Cam/Crank Correlation). A correlation code specifically points toward potential mechanical timing issues, not just a bad sensor.
2. Extended Cranking or No-Start Condition
   • The engine may crank normally but fail to fire because the ECU cannot initiate the required injection sequence.
3. Sudden Engine Stalling and Erratic/Rough Idle
   • The engine abruptly shuts down, particularly at low RPMs (e.g., coming to a stop or idling). The ECU’s inability to maintain precise timing causes rough or oscillating RPMs.
4. Severe Loss of Power and Sluggish Acceleration
   • The ECU defaults to a “safe” or “limp-mode” timing map (often called derate mode in HDDEs) to prevent internal damage, severely limiting torque and horsepower.
5. Engine Misfiring (DTC P030X Series)
   • Incorrect fuel timing leads to combustion occurring outside the optimal window, resulting in cylinder misfires, rough running, and increased vibration.
6. Reduced Fuel Efficiency (Lower MPG/KPL)
   • The ECU compensates for the timing error by running a less efficient fuel map, directly impacting the operational cost of the vehicle.
7. Transmission Shifting Issues
   • In many modern electronically controlled automatic and automated manual transmissions (AMTs), the transmission control module (TCM) relies on accurate engine speed and load data from the CMP/CKP sensors to execute smooth, timely shifts. Faults can cause harsh, delayed, or erratic shifting.
8. Engine Entering “Limp-Home” or “Derate Mode”
   • A critical fail-safe where the ECU drastically cuts power to protect the engine from internal collision (piston-to-valve contact).
9. Increased Engine Noise (Ticking/Knocking)
   • In severe cases, improper timing can lead to pre-ignition or post-injection events, creating audible knocking or a sharp ticking sound—a red flag for imminent internal engine damage.
10. DPF and Emission System Faults
    • Improper diesel combustion due to poor timing generates excessive soot. This rapidly overloads the DPF, causing DPF regeneration failures, DPF-related fault codes, and costly forced cleanings or replacements.

The Professional Diagnostic Process: Beyond the Multimeter

While a basic multimeter (DMM) can check for voltage and continuity, diagnosing a CMP failure in HDDEs requires precision and, critically, an Oscilloscope.

Advanced Testing with an Oscilloscope

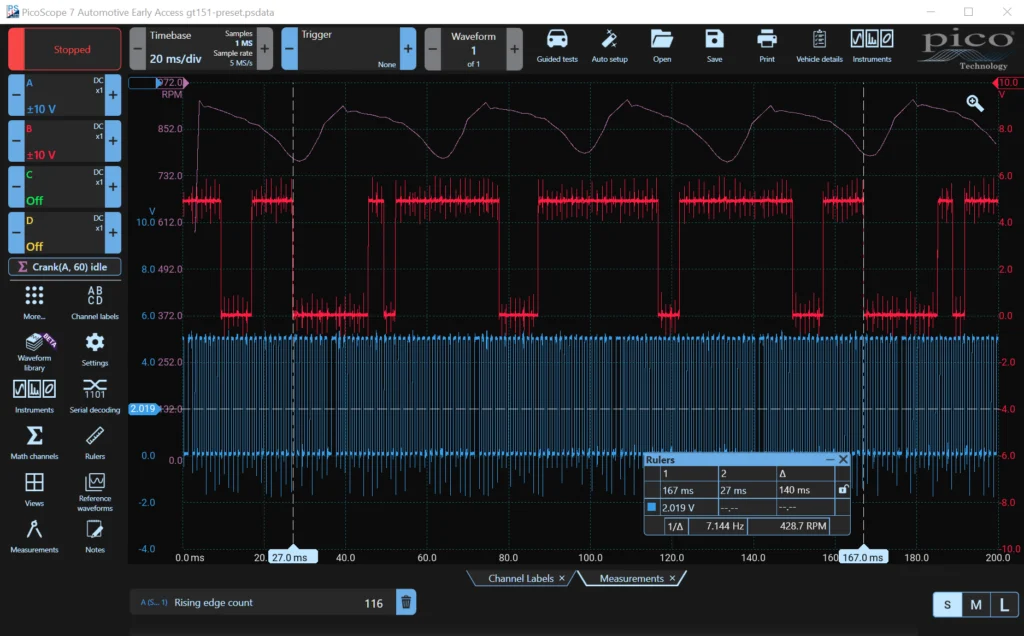

The oscilloscope is the definitive tool because it graphically displays the sensor’s output signal (waveform) against time, allowing the technician to analyze shape, frequency, amplitude, and, most importantly, synchronization.

Types of CMP Sensors: Technical Differences

Understanding the sensor type dictates the correct testing methodology (voltage vs. resistance) and expected waveform:

Critical Transition Point: Volgen Power’s Preventive Stance

The P0340 Misdiagnosis Trap: When the Symptom Masks the Catastrophe

The highest-risk situation in HDDE diagnostics is the belief that replacing a $150 sensor resolves a P0340/P0016 code when the underlying issue is mechanical wear.

If you confirm the following, the problem has escalated beyond the sensor:

• The new, OEM-spec sensor still throws the code.
• The oscilloscope shows a pattern that is shifted or erratic relative to the CKP.
• The code reappears intermittently, especially under load or high RPMs.

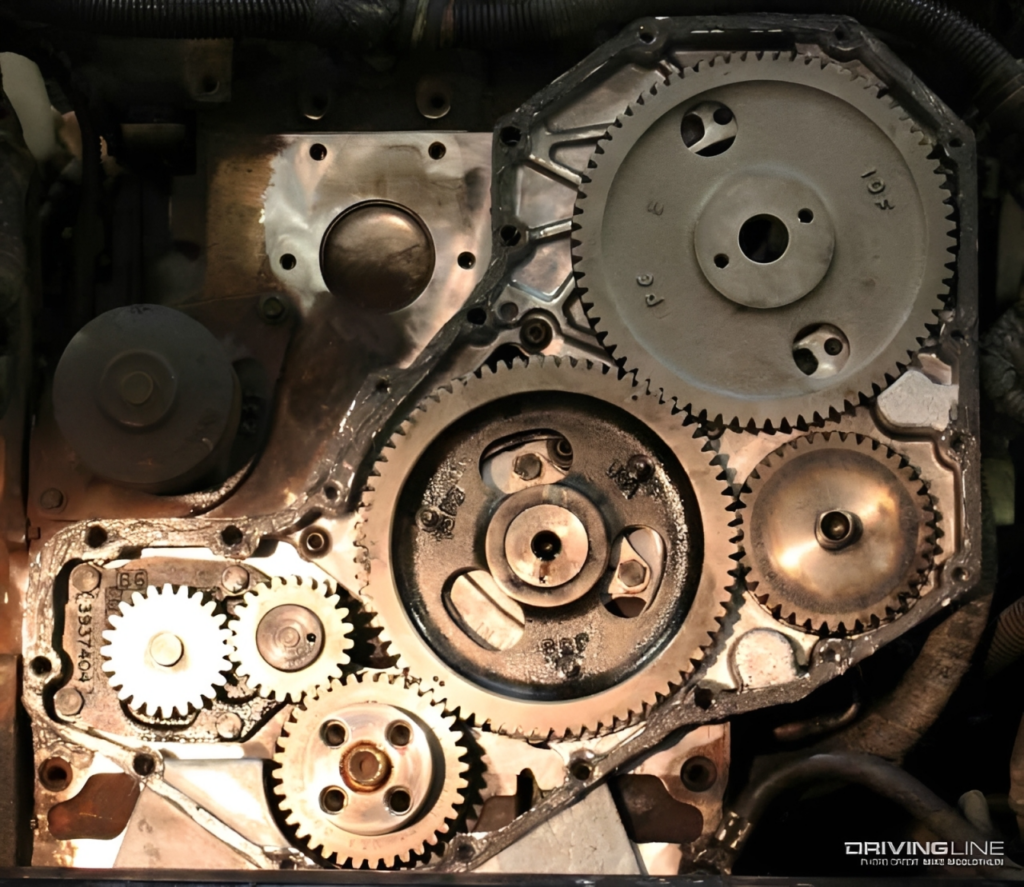

This signifies a critical failure in the engine’s timing components—a stretched timing chain/belt, worn timing gears, damaged camshaft bearing, or, in the worst case, a worn Crankshaft/Cylinder Head assembly. Continuing to operate the vehicle in this state virtually guarantees piston-to-valve contact, leading to a complete engine shutdown and a bill easily exceeding $15,000 USD.

➡️ The High-Value Decision: Do not risk the engine. Consult Volgen Power now for a Core Component Assessment.

Repair, Replacement, and Post-Installation ECU Management

Once the failed component (be it the sensor, wiring, or a mechanical part) is identified, the repair process must include post-installation protocols essential for modern computerized engines.

Sensor Replacement Best Practices

1. Strictly use OEM or Equivalent Quality Sensors: HDDE ECUs are extremely sensitive to signal quality. Non-spec aftermarket sensors often have improper voltage ranges or signal timing, which can trigger a persistent P0340/P0341 code, even if technically “working.”
2. Inspect the Mounting Area: Ensure the sensor tip and its mounting bore are completely free of oil sludge, metal debris, or contamination. Debris can interfere with the magnetic field, causing signal noise.
3. Correct Torque: Over-torquing the sensor bolt can deform the plastic/composite housing and damage the internal components or the sensor tip.

Post-Replacement ECU Learning and Reset

Replacing the sensor itself is often not enough. The ECU must be forced to “relearn” the new sensor’s signal characteristics and establish a new synchronization point.

• DTC Clearing: Use a professional OBD-II/J1939 scanner to clear all stored diagnostic trouble codes (DTCs), such as P0340 and P0016. Simply disconnecting the battery is insufficient for persistent or complex codes.
• Cam/Crank Relearn Procedure: Most modern HDDEs, particularly those with VVT, require a specialized “Crankshaft Position System Variation Learn” or similar procedure. This utilizes the scanner to guide the ECU through a sequence (usually running the engine at a specific RPM range) to map the new CMP/CKP signals accurately. Failing to perform this step is a leading cause of P0340 reappearance.

The Cost-Risk Escalation Analysis: Small Repair vs. Large Overhaul

For fleet operations, the true cost of a P0340 is not the sensor price, but the Downtime and Potential Overhaul.

The Volgen Power Philosophy: Our 26 years of supplying the global heavy-duty market have shown that preventing the $20,000 catastrophe begins with a quality repair using reliable mechanical components. If your diagnosis confirms timing component wear, investing in high-precision, tested core parts is the only way to restore the engine’s long-term value.

Volgen Power: The Global Standard for Diesel Engine Core Components

When a P0340 diagnosis leads you to the repair of high-value internal engine damage, the source and quality of your replacement parts are non-negotiable. Compromising on a crankshaft or cylinder head can lead to repeated failure and even shorter operational life than the original component.

Volgen Power does not sell low-cost, high-volume generic sensors. We focus on the ultimate components that protect your investment:

• Precision Manufacturing: Our core components, including Cummins Crankshafts, MAN Crankshafts, and Volvo D11/D13 Cylinder Heads, are manufactured and tested to meet or exceed OEM specifications for metallurgy, dimensional accuracy, and fatigue resistance.
• Specialization in HDDE: Our product line is tailored exclusively for the rigorous demands of heavy machinery and commercial transport, ensuring maximum uptime and reliability in the field.
• Global Supply Chain Partner: We are the trusted supplier for thousands of engine rebuilders, fleet workshops, and power generation companies worldwide, known for our reliability and competitive factory-direct pricing.

If your P0340 diagnosis points to component wear, Volgen Power is your solution for engine longevity.

From Code Reader to Master Diagnostician

The P0340 code is a signal, not the problem itself. By applying professional diagnostic rigor—especially the use of an oscilloscope to verify correlation—you transition from a parts changer to a master diagnostician. Your ability to correctly identify mechanical timing faults is what differentiates a quick sensor swap from preventing a $20,000 overhaul.

When the decision is between minor repair and major mechanical replacement, ensure you choose high-quality core components that are built to last.

Disconnecting the Battery

Resetting a camshaft position sensor typically involves disconnecting the battery to reset the ECU. This method can clear fault codes and restore the sensor’s functionality.

Using a Diagnostic Scanner

Alternatively, a diagnostic scanner can be used to clear fault codes and reset the camshaft position sensor. This method is more precise and can provide additional diagnostic information.

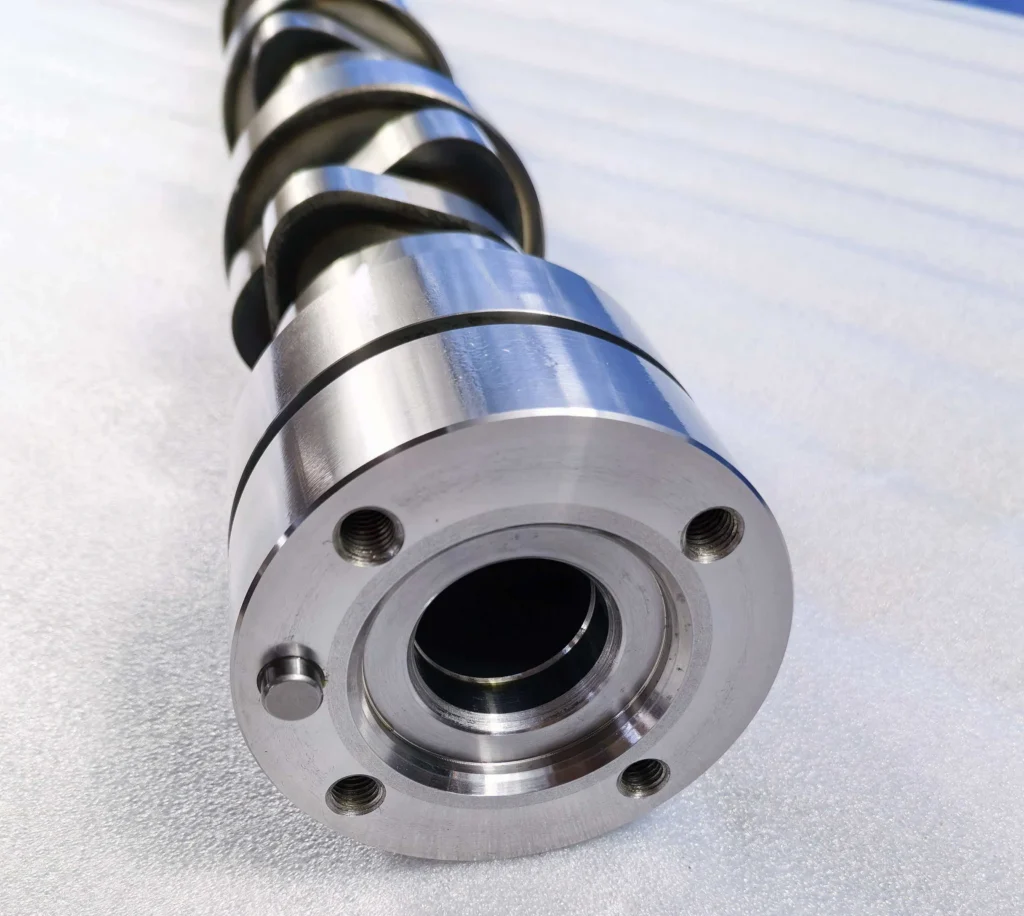

Camshaft Replacement Cost

Cost Breakdown

The cost of replacing a camshaft can vary widely based on the vehicle and labor rates. On average, the cost can range from $100 to $3,00, including parts and labor. The camshaft itself may cost between $200 and $1,000, while labor can range from $500 to $2,000.

Camshaft Bearing Tool

A camshaft bearing tool is essential for installing or removing camshaft bearings. This tool ensures that the bearings are correctly positioned and secured.

Camshaft Bolt

The camshaft bolt secures the camshaft in place and must be properly torqued during installation. Using the correct tools and techniques is crucial for maintaining engine integrity.

For quality camshaft position sensors and related automotive parts, visit Volgen Power. With over 26 years of experience, Volgen Power offers a wide range of reliable and high-quality Diesel Engine Parts, including Cummins Crankshafts, MAN Crankshafts, and Volvo D11 D13 Cylinder Heads.

FAQs.

Q: What are the most common symptoms of a bad camshaft position sensor?

A: Common symptoms include a check engine light, starting difficulties, stalling, erratic idling, poor acceleration, engine misfires, reduced fuel efficiency, transmission shifting issues, power loss, unusual engine noises, and complete engine failure.

Q: How can I tell if my camshaft position sensor is failing?

A: Look for symptoms like a lit check engine light, rough idling, or misfires. Use an OBD-II scanner to check for codes like P0340 or P0341, or test the sensor with a multimeter to verify voltage or resistance readings.

Q: Can I drive with a bad camshaft position sensor?

A: Driving with a faulty sensor is not recommended. It can lead to poor performance, reduced fuel efficiency, or complete engine failure, potentially causing further damage or unsafe driving conditions.

Q: How can I reset a camshaft position sensor?

A: You can reset the sensor by disconnecting the vehicle’s battery to clear ECU fault codes or by using a diagnostic scanner to erase codes and reset the system. A scanner provides more precision and diagnostic insights.

Q: How much does it cost to replace a camshaft position sensor?

A: Replacing a camshaft position sensor typically costs $100–$300, including parts ($20–$100) and labor ($80–$200). Costs vary by vehicle make, model, and labor rates.

Q: Can I replace a camshaft position sensor myself?

A: Yes, with basic tools (screwdriver, ratchet, socket wrench) and a replacement sensor, you can DIY. Disconnect the battery, remove the old sensor, install the new one, and clear fault codes. Refer to your vehicle’s manual for specifics, or consult a mechanic if unsure.

Q: Where can I find high-quality camshaft position sensors?

A: Reliable camshaft position sensors and related parts are available from trusted suppliers like Volgen Power, which offers high-quality diesel engine components with over 26 years of expertise.
